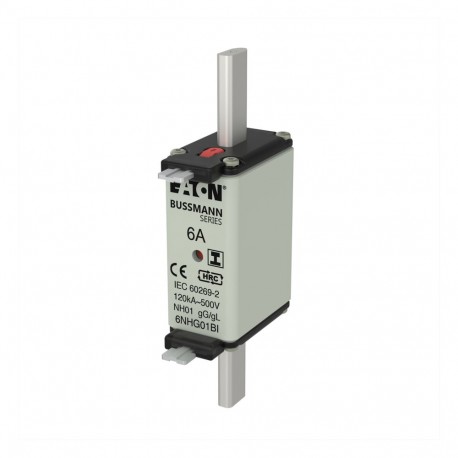

EATON - MOELLER BUSSMANN 6A 500V GG 01 BUSSMANN 6A 500V GG 01 6NHG01BI EATON ELECTRIC BUSSMANN 6A 500V GG 01 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BUSSMANN 6A 500V GG 01 6NHG01BI EATON ELECTRIC BUSSMANN 6A 500V GG 01

BUSSMANN 6A 500V GG 01

6NHG01BI

6NHG01BI

EATON - MOELLER

3 Pcs.

BUSSMANN 6A 500V GG 01 Fuse-link, LV, 6 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manage industrial electrical distribution protection with the Eaton Moeller BUSSMANN 6A 500V GG 01 fuse link. Standard NH fuses provide dependable current-limiting performance to defend wiring assets against fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 6 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 2 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
6NHG01BI
EAN
5027590486392
Product Length/Depth
137 mm
Product Height
68 mm
Product Width
102 mm
Product Weight
295 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
6 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch 170H0235

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
