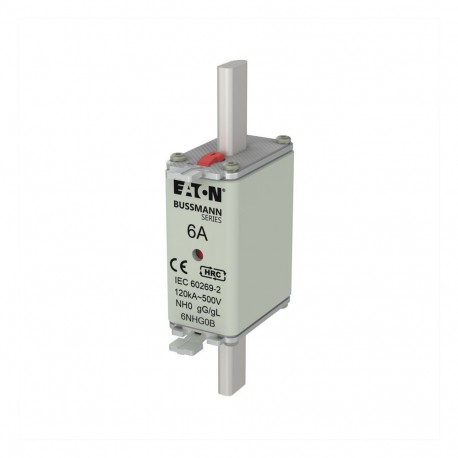

EATON - MOELLER NH FUSE 6A 500V GG/GL SIZE 0 NH FUSE 6A 500V GG/GL SIZE 0 6NHG0B EATON ELECTRIC Fuse-link, DII, 6A, 500 V, DZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 6A 500V GG/GL SIZE 0 6NHG0B EATON ELECTRIC Fuse-link, DII, 6A, 500 V, DZ

NH FUSE 6A 500V GG/GL SIZE 0

6NHG0B

6NHG0B

EATON - MOELLER

3 Pcs.

Fuse-link, DII, 6A, 500 V, DZ NH FUSE 6A 500V GG/GL SIZE 0 Fuse-link, LV, 6 A, AC 500 V, NH0, gL/gG, IEC, dual indicator, live gripping lugs Fuse, Fuse-link, low voltage, 6 A, AC 500 V, NH0, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
6NHG0B
Model Code
NH FUSE 6A 500V GG/GL SIZE 0
EAN
5027590486422
Product Length/Depth
125 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
299.3333333 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
6 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH0
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors

ETIM for 6NHG0B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH0
Voltage type (EF000187) AC
Rated current (EF000227) 6 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
