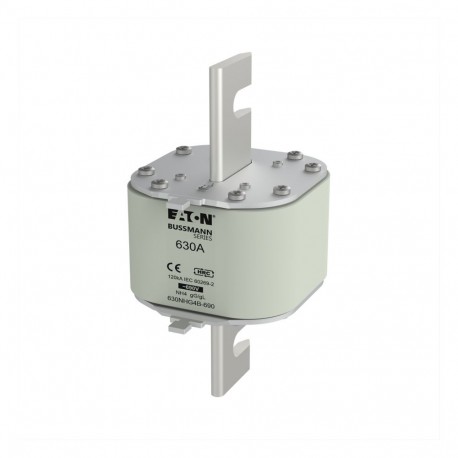

NH FUSE 630A 690V GG SIZE 4

630NHG4B690

630NHG4B-690

EATON - MOELLER

1 Pcs.

Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single indicator, live gripping lugs NH FUSE 630A 690V GG SIZE 4 Fuse, fuse-link, low voltage, 630 A, AC 690 V, NH4, gL/gG, IEC, single (top) indicator system, square-body with slotted blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty power distribution systems, the NH FUSE 630A 690V GG SIZE 4 from Eaton Moeller is an NH FUSE 630A 690V GG SIZE 4 630NHG4B-690 EATON ELECTRIC Fuse-link deployed to interrupt hazardous fault currents and protect electrical cables from thermal overload. Industrial fuse links act as a final line of defense in switchboards and control cabinets by safely clearing high-amperage short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH4
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 630 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Top fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 44 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
630NHG4B-690
Model Code
NH FUSE 630A 690V GG SIZE 4
EAN
5027590323826
UPC
051712682824
Product Length/Depth
200 mm
Product Height
115 mm
Product Width
102 mm
Product Weight
2709 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
630 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH4
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD4-S NH Fuse base
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
