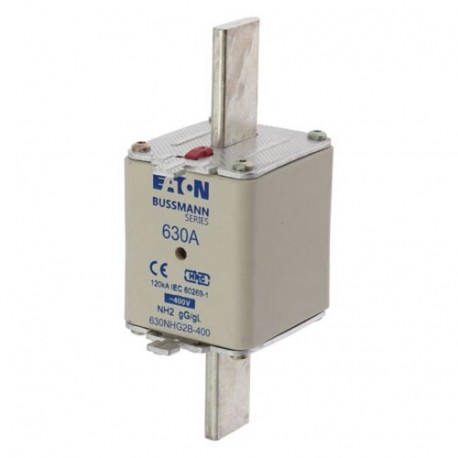

EATON - MOELLER NH FUSE 630A 400V GG/GL SIZE 2 NH FUSE 630A 400V GG/GL SIZE 2 630NHG2B-400 EATON ELECTRIC Fuse-link, LV, 630 A, AC 400 V, NH2, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 630A 400V GG/GL SIZE 2 630NHG2B-400 EATON ELECTRIC Fuse-link, LV, 630 A, AC 400 V, NH2, gL/gG, IEC, ..

NH FUSE 630A 400V GG/GL SIZE 2

630NHG2B400

630NHG2B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 630 A, AC 400 V, NH2, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 630A 400V GG/GL SIZE 2 Fuse, fuse-link, low voltage, 630 A, AC 400 V, NH2, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
630NHG2B-400
Model Code
NH FUSE 630A 400V GG/GL SIZE 2
EAN
5027590484848
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
659 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
630 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH2
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 630NHG2B-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH2
Voltage type (EF000187) AC
Rated current (EF000227) 630 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Rated voltage DC (EF012281) None V
Rated switching capacity DC (EF017699) None kA
Utilization category according to IEC 60269 (EF002572) gG
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) false
Power loss at rated current (EF012389) 44 W
