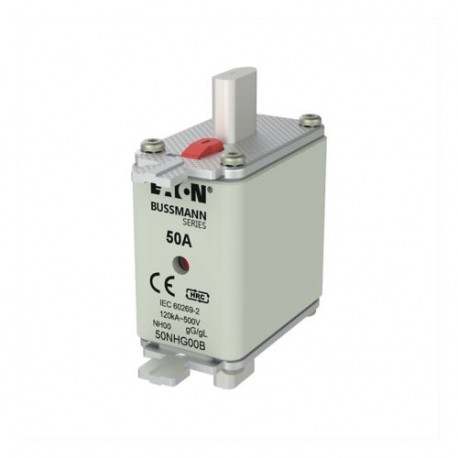

EATON - MOELLER NH FUSE 50A 500V GG SIZE 00 NH FUSE 50A 500V GG SIZE 00 50NHG00B EATON ELECTRIC Fuse-link, 14x51 mm, 50A, gG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 500V GG SIZE 00 50NHG00B EATON ELECTRIC Fuse-link, 14x51 mm, 50A, gG

NH FUSE 50A 500V GG SIZE 00

50NHG00B

50NHG00B

EATON - MOELLER

3 Pcs.

Fuse-link, 14x51 mm, 50A, gG NH FUSE 50A 500V GG SIZE 00 Eaton Bussmann series low voltage NH Fuse Fuse-link, low voltage, 50 A, AC 500 V, NH00, gL/gG, IEC, dual indicator Fuse, Fuse-link, low voltage, 50 A, AC 500 V, NH00, gL/gG, IEC, dual indicator, square body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA, Optional accessories fuse-holder SD00-D and SD00-S

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG00B
Model Code
NH FUSE 50A 500V GG SIZE 00
EAN
5027590483230
UPC
051712680868
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
200 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
50 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236

ETIM for 50NHG00B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH00
Voltage type (EF000187) AC
Rated current (EF000227) 50 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
