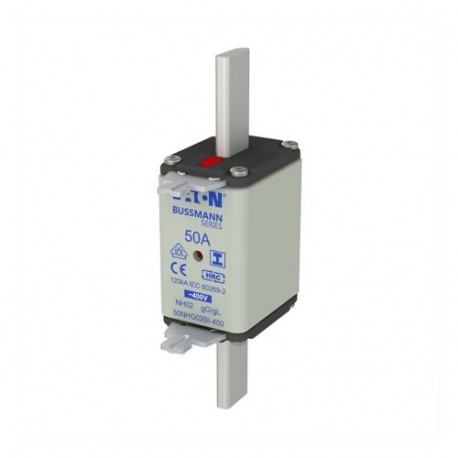

EATON - MOELLER NH FUSE 50A 400V GG/GL SIZE 02 NH FUSE 50A 400V GG/GL SIZE 02 50NHG02BI-400 EATON ELECTRIC cartridge fuse, BT 50 A, AC 400 V, NH02, gL/gG, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 400V GG/GL SIZE 02 50NHG02BI-400 EATON ELECTRIC cartridge fuse, BT 50 A, AC 400 V, NH02, gL/gG, ..

NH FUSE 50A 400V GG/GL SIZE 02

50NHG02BI400

50NHG02BI-400

EATON - MOELLER

3 Pcs.

cartridge fuse, BT 50 A, AC 400 V, NH02, gL/gG, IEC, indicator double, terminals, insulated metal NH FUSE 50A 400V GG/GL SIZE 02 NH FUSE 50A 400V GG/GL SIZE 02 - Fuse-link, low voltage, 50 A, AC 400 V, 120 kA, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs Fuse, fuse-link, low voltage, 50 A, AC 400 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller NH FUSE 50A 400V GG/GL SIZE 02 (50NHG02BI-400) is an industrial low voltage cartridge fuse that safeguards electrical wiring and connected machinery against overload conditions. It installs securely within standard fuse holders in electrical panels. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH02
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 50 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 6.5 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG02BI-400
EAN
5027590483384
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
435.3333333 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
50 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH02
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch BVL50

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
