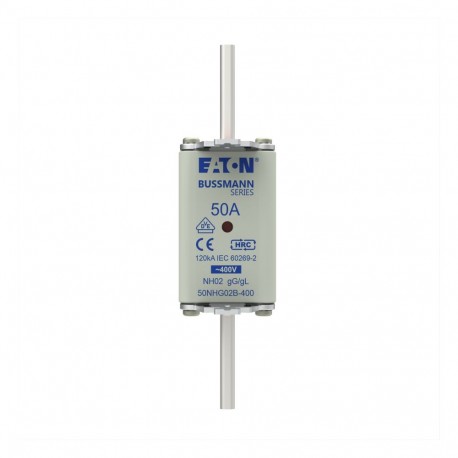

EATON - MOELLER NH FUSE 50A 400V GG/GL SIZE 02 NH FUSE 50A 400V GG/GL SIZE 02 50NHG02B-400 EATON ELECTRIC cartridge fuse, BT 50 A, AC 400 V, NH02, gL/gG, I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 400V GG/GL SIZE 02 50NHG02B-400 EATON ELECTRIC cartridge fuse, BT 50 A, AC 400 V, NH02, gL/gG, I..

NH FUSE 50A 400V GG/GL SIZE 02

50NHG02B400

50NHG02B-400

EATON - MOELLER

3 Pcs.

cartridge fuse, BT 50 A, AC 400 V, NH02, gL/gG, IEC, indicator double, metal terminals NH FUSE 50A 400V GG/GL SIZE 02 Fuse-link, LV, 50 A, AC 400 V, NH02, gL/gG, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 50 A, AC 400 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG02B-400
EAN
5027590483353
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
427 g
Compliances
CE
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
50 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 50NHG02B-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH02
Voltage type (EF000187) AC
Rated current (EF000227) 50 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 6.5 W
