View larger
Images are for illustrative purposes only. Please refer to data sheet for details

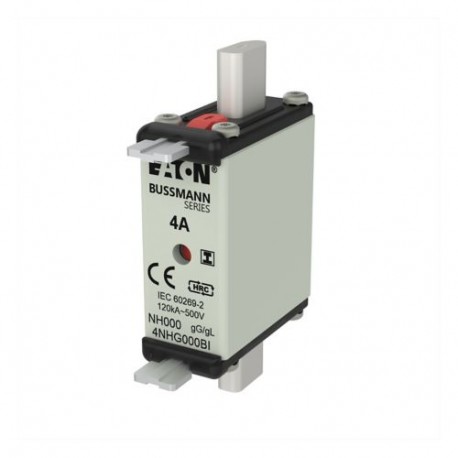

NH FUSE 4A 500V SIZE 000 GG IMGL 4NHG000BI EATON ELECTRIC Fuse-link, 14x51 mm, 50A, gG
NH FUSE 4A 500V SIZE 000 GG IMGL
4NHG000BI
4NHG000BI
EATON - MOELLER
3 Pcs.
NH FUSE 4A 500V SIZE 000 GG IMGL
Fuse-link, LV, 4 A, AC 500 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, Fuse-link, low voltage, 4 A, AC 500 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
4NHG000BI
Model Code
NH FUSE 4A 500V SIZE 000 GG IMGL
EAN
5027590482400
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
131 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
4 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Product specification
Fuse size
NH01
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
Microswitch 170H0235
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH000 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 4 A |
| Rated voltage AC (EF007682) | 500 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 1.8 W |
