View larger
Images are for illustrative purposes only. Please refer to data sheet for details

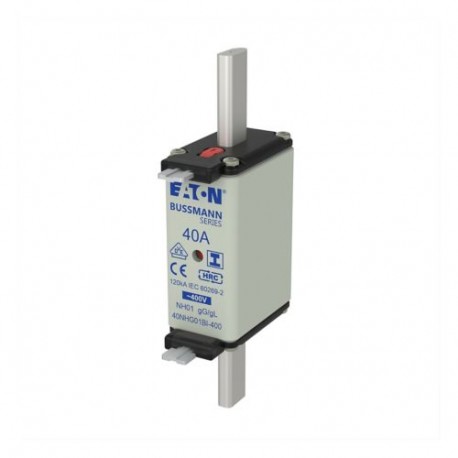

NH FUSE 40A 400V GG/GL SIZE 01 40NHG01BI-400 EATON ELECTRIC Fuse link without blink application with D01 fus..
NH FUSE 40A 400V GG/GL SIZE 01
40NHG01BI400
40NHG01BI-400
EATON - MOELLER
3 Pcs.
Fuse link without blink application with D01 fuse, 2A, 400VAC, gL/gG, set consists of 3 pieces
NH FUSE 40A 400V GG/GL SIZE 01
Fuse-link, LV, 40 A, AC 400 V, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, fuse-link, low voltage, 40 A, AC 400 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
40NHG01BI-400
EAN
5027590480383
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
437 g
Compliances
RoHS Compliant
CE Marked
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
40 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH01
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
Microswitch 170H0235
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH01 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 40 A |
| Rated voltage AC (EF007682) | 400 V |
| Rated switching capacity AC (EF017698) | 120 kA |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
| Power loss at rated current (EF012389) | 5 W |
