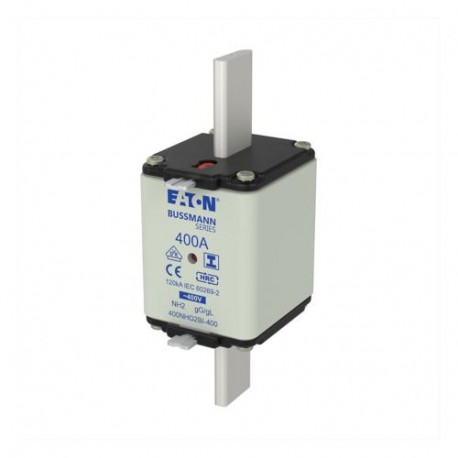

EATON - MOELLER NH FUSE 400A 400V GG/GL SIZE 2 NH FUSE 400A 400V GG/GL SIZE 2 400NHG2BI-400 EATON ELECTRIC Fuse-link, LV, 400 A, AC 400 V, NH03, gL/gG, IEC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 400A 400V GG/GL SIZE 2 400NHG2BI-400 EATON ELECTRIC Fuse-link, LV, 400 A, AC 400 V, NH03, gL/gG, IEC..

NH FUSE 400A 400V GG/GL SIZE 2

400NHG2BI400

400NHG2BI-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 400 A, AC 400 V, NH03, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 400A 400V GG/GL SIZE 2 Eaton Bussmann series low voltage NH Fuse, 400V, 400A, 120 kAIC, Combination fuse status indicator, fuse, Class C gL/gG Fuse-link, low voltage, 400 A, AC 400 V, NH2, gL/gG, IEC, dual indicator, insulated gripping lugs

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
400NHG2BI-400
EAN
5027590479813
UPC
051712233538
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
659 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
400 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH2
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 400NHG2BI-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH2
Voltage type (EF000187) AC
Rated current (EF000227) 400 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 24 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
