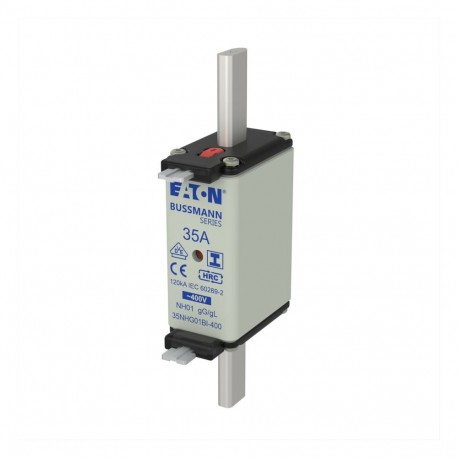

NH FUSE 35A 400V GG/GL SIZE 01 35NHG01BI-400 EATON ELECTRIC cartridge fuse, BT 35 A, AC 400 V, NH01, gL/gG, ..
NH FUSE 35A 400V GG/GL SIZE 01
35NHG01BI400
35NHG01BI-400
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Applied within commercial control panels, the NH FUSE 35A 400V GG/GL SIZE 01 from Eaton Moeller protects branch circuits and connected equipment from overloads and short circuits. This NH01 cartridge fuse features insulated gripping lugs.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH01
- Voltage type (EF000187): AC
- Rated current (EF000227): 35 A
- Rated voltage AC (EF007682): 400 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): Yes
- Power loss at rated current (EF012389): 4.9 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
