> EATON - MOELLER > Bussmann Series Low Voltage fuses and accessories > 250NHG03BI400

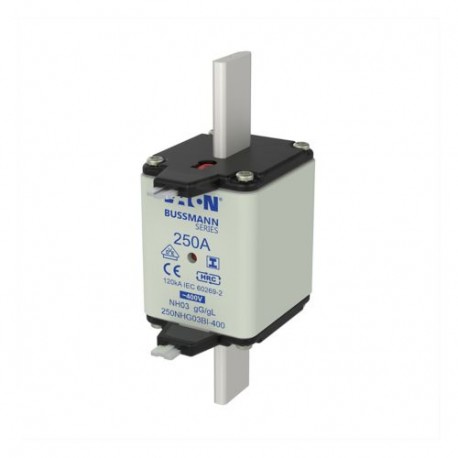

EATON - MOELLER BUSSMANN 250A 400V GG 03 BUSSMANN 250A 400V GG 03 250NHG03BI-400 EATON ELECTRIC Fuse-link, DIII, 63A, 500 V, DZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BUSSMANN 250A 400V GG 03 250NHG03BI-400 EATON ELECTRIC Fuse-link, DIII, 63A, 500 V, DZ

BUSSMANN 250A 400V GG 03

250NHG03BI400

250NHG03BI-400

EATON - MOELLER

3 Pcs.

Fuse-link, DIII, 63A, 500 V, DZ BUSSMANN 250A 400V GG 03 Fuse-link, LV, 250 A, AC 400 V, NH03, gL/gG, IEC, dual indicator, insulated gripping lugs Fuse, fuse-link, low voltage, 250 A, AC 400 V, NH03, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
250NHG03BI-400
Model Code
BUSSMANN 250A 400V GG 03
EAN
5027590469630
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
676 g
Compliances
CE
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
250 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

ETIM for 250NHG03BI-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH03
Voltage type (EF000187) AC
Rated current (EF000227) 250 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 18 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
