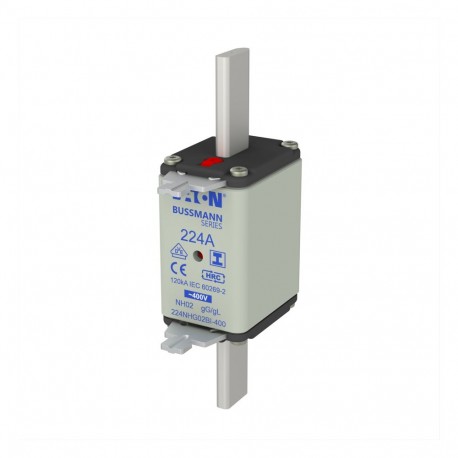

EATON - MOELLER NH FUSE 224A 400V GG/GL SIZE 02 NH FUSE 224A 400V GG/GL SIZE 02 224NHG02BI-400 EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH02, gL/gG, I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 224A 400V GG/GL SIZE 02 224NHG02BI-400 EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH02, gL/gG, I..

NH FUSE 224A 400V GG/GL SIZE 02

224NHG02BI400

224NHG02BI-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 224 A, AC 500 V, NH02, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 224A 400V GG/GL SIZE 02 224NHG02BI-400 - Fuse-link, LV, 224 A, AC 400 V, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs Fuse, fuse-link, low voltage, 224 A, AC 400 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for robust performance in electrical distribution boards, the Eaton Moeller NH FUSE 224A 400V GG/GL SIZE 02 safeguards conductors and connected loads from thermal overloads. This fuse-link ensures high breaking capacity during electrical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269: NH02
  • Voltage type: AC
  • Rated current: 224 A
  • Rated voltage AC: 400 V
  • Rated switching capacity AC: 120 kA
  • Utilization category according to IEC 60269: gG (cable protection/equipment protection)
  • Type of fuse status indicator: Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL): Yes
  • Power loss at rated current: 12 W

More info

▲
Fuse-link, LV, 224 A, AC 400 V, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, fuse-link, low voltage, 224 A, AC 400 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

General specifications
Product name
Eaton Bussmann series low voltage NH Fuse
Part no.
224NHG02BI-400
EAN
5027590468527
Product Length/Depth
150 millimetre
Product height
63 millimetre
Product width
40 millimetre
Product weight
407.333333 gram
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
Product Tradename
None
Product Type
Low voltage NH fuse
Product Sub Type
None
Electrical data
Amperage Rating
224 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specifications
Fuse size
NH02
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
Microswitch BVL50

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Knife blade fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Fuse construction type according to IEC 60269
NH02
Voltage type
AC
Rated current
224 A
Rated voltage AC
400 V
Rated voltage DC
V
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
Power loss at rated current
12 W
