EATON - MOELLER NH FUSE 224A 400V GG/GL SIZE 1 NH FUSE 224A 400V GG/GL SIZE 1 224NHG1BI-400 EATON ELECTRIC cartridge fuse, BT 224 A, AC 400 V, NH1, gL/gG, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 224A 400V GG/GL SIZE 1 224NHG1BI-400 EATON ELECTRIC cartridge fuse, BT 224 A, AC 400 V, NH1, gL/gG, ..

NH FUSE 224A 400V GG/GL SIZE 1

224NHG1BI400

224NHG1BI-400

EATON - MOELLER

3 Pcs.

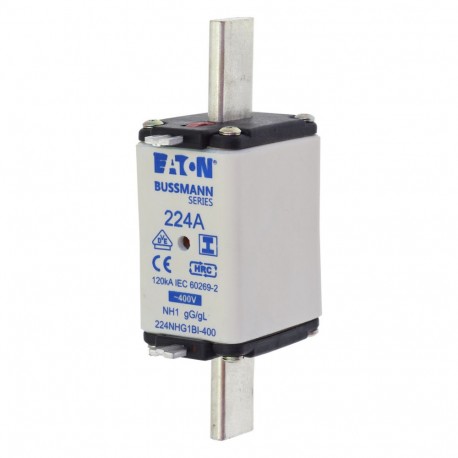

cartridge fuse, BT 224 A, AC 400 V, NH1, gL/gG, IEC, indicator double, terminals, insulated metal 224A, AC 400V, NH1 Fuse with insul lugs Eaton Bussmann series low voltage NH Fuse, 400V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Class C gL/gG Fuse, fuse-link, low voltage, 224 A, AC 400 V, NH1, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
224NHG1BI-400
EAN
5027590468619
UPC
051712233507
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
437 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
224 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH1
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 224NHG1BI-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH1
Voltage type (EF000187) AC
Rated current (EF000227) 224 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 12 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
