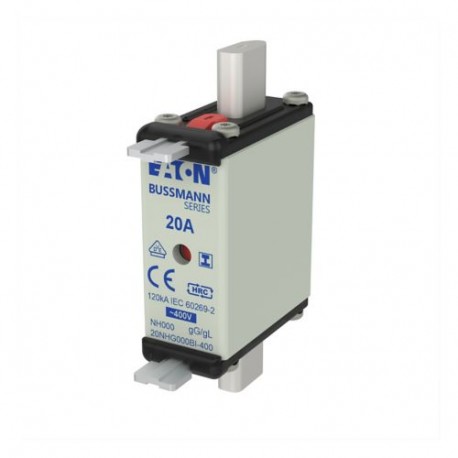

NH FUSE 20A 400V GG/GL SIZE 000 20NHG000BI-400 EATON ELECTRIC Fuse-link, LV, 20 A, AC 400 V, NH000, gL/gG, I..
NH FUSE 20A 400V GG/GL SIZE 000
20NHG000BI400
20NHG000BI-400
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Compact electrical control panels utilize components like the Eaton Moeller NH FUSE 20A 400V GG/GL SIZE 000 fuse-link to safeguard sensitive branch circuits against overloads. These miniature low-voltage fuses are standard building blocks in commercial and light industrial power architecture.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH000
- Voltage type (EF000187): AC
- Rated current (EF000227): 20 A
- Rated voltage AC (EF007682): 400 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): Yes
- Power loss at rated current (EF012389): 2.2 W
More info
▲General specifications
RoHS Compliant
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
