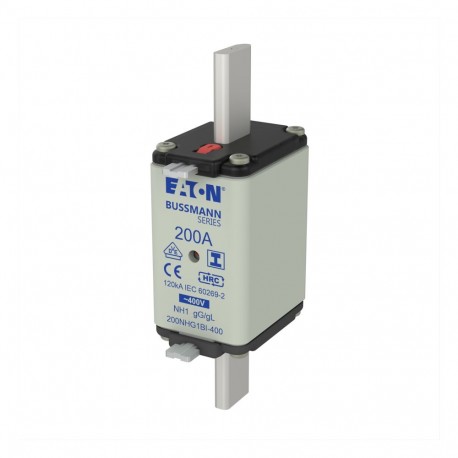

EATON - MOELLER NH FUSE 200A 400V GG/GL SIZE 1 NH FUSE 200A 400V GG/GL SIZE 1 200NHG1BI-400 EATON ELECTRIC Fuse-link, DIII, 63A, 500 V, DZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 200A 400V GG/GL SIZE 1 200NHG1BI-400 EATON ELECTRIC Fuse-link, DIII, 63A, 500 V, DZ

NH FUSE 200A 400V GG/GL SIZE 1

200NHG1BI400

200NHG1BI-400

EATON - MOELLER

3 Pcs.

Fuse-link, DIII, 63A, 500 V, DZ 200 A,AC 400 V, NH1,Fuse with insul lugs Eaton Bussmann series low voltage NH Fuse, 400V, 200A, 120 kAIC, Combination fuse status indicator, fuse, Class C gL/gG Fuse, fuse-link, low voltage, 200 A, AC 400 V, NH1, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Fuse-link NH FUSE 200A 400V GG/GL SIZE 1 by Eaton Moeller is an essential electrical component integrated into main distribution networks to provide dependable overload and short-circuit protection for commercial and industrial setups. These units isolate faulty circuits to prevent equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 200 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 12 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
200NHG1BI-400
EAN
5027590467278
UPC
051712233491
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
407.3333333 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Type
Fuse
Application
Amperage Rating
200 A
Fitted with:
Insulated metal gripping lugs
Fuse size
NH1
Current type
AC
Breaking capacity
120 kA
Frequency rating - max
62 Hz
Frequency rating - min
45 Hz
Rated switching capacity
120 kA
Rated voltage AC
400 V
Class
Class gG/gL
Fuse type
Square body with knife blade contact
Accessory/spare part type
SDL-1 Solid link
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD00-PB 2-phase barriers
TD1-IP20 Triple pole protection kit
Utilization category
gL/gG (cable protection/equipment protection)
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
Watt losses
12 W
Connection
Blade end
Construction
NH1
Construction size
NH1
Fuse shape
Square body
Knife blade contacts
Voltage type
AC
Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
Material
Ceramic body
Packaging type
Standard
Quantity
3
Voltage rating
400 V
Rated switching capacity AC
120 kA
