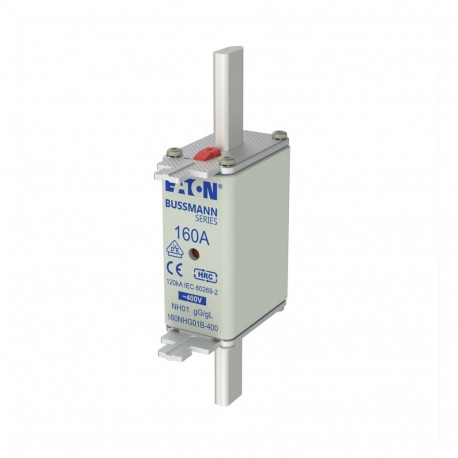

EATON - MOELLER NH FUSE 160A 400V GG/GL SIZE 01 NH FUSE 160A 400V GG/GL SIZE 01 160NHG01B-400 EATON ELECTRIC Fuse-link, LV, 160 A, AC 400 V, NH00, gL/gG, IE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 160A 400V GG/GL SIZE 01 160NHG01B-400 EATON ELECTRIC Fuse-link, LV, 160 A, AC 400 V, NH00, gL/gG, IE..

NH FUSE 160A 400V GG/GL SIZE 01

160NHG01B400

160NHG01B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 160 A, AC 400 V, NH00, gL/gG, IEC, dual indicator, live gripping lugs 160 A, AC 400 V NH01 Fuse Link live lugs Fuse, fuse-link, low voltage, 160 A, AC 400 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for medium-voltage and low-voltage distribution systems, the Eaton Moeller NH FUSE 160A 400V GG/GL SIZE 01 acts as a dependable circuit protection element. These standard cartridge fuses isolate faulty circuit segments rapidly to ensure continuous plant safety and operational integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 160 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 8.9 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
160NHG01B-400
EAN
5027590437264
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
295 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
160 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0235

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
