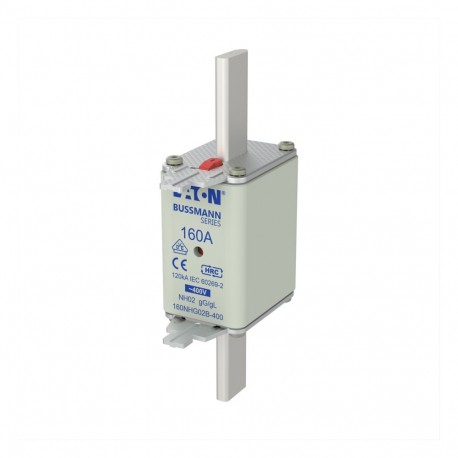

EATON - MOELLER NH FUSE 160A 400V GG/GL SIZE 02 NH FUSE 160A 400V GG/GL SIZE 02 160NHG02B-400 EATON ELECTRIC Fuse-link, LV, 100 A, AC 400 V, NH02, gL/gG, IE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 160A 400V GG/GL SIZE 02 160NHG02B-400 EATON ELECTRIC Fuse-link, LV, 100 A, AC 400 V, NH02, gL/gG, IE..

NH FUSE 160A 400V GG/GL SIZE 02

160NHG02B400

160NHG02B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 100 A, AC 400 V, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 160A 400V GG/GL SIZE 02 Fuse, fuse-link, low voltage, 160 A, AC 400 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
160NHG02B-400
EAN
5027590437325
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
427 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
160 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH02
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch BVL50

ETIM for 160NHG02B-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH02
Voltage type (EF000187) AC
Rated current (EF000227) 160 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 10 W
