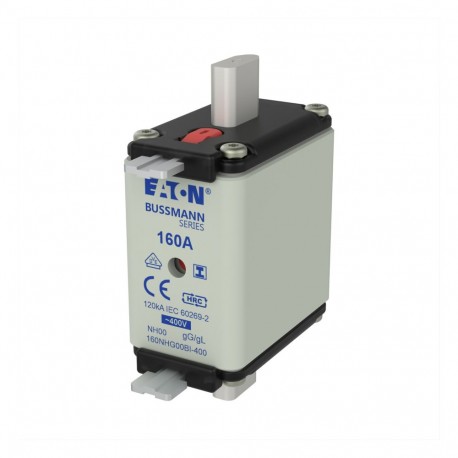

EATON - MOELLER NH FUSE 160A 400V GG/GL SIZE 00 NH FUSE 160A 400V GG/GL SIZE 00 160NHG00BI-400 EATON ELECTRIC cartridge fuse, BT 160 A, AC 400 V, NH00, gL/g.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 160A 400V GG/GL SIZE 00 160NHG00BI-400 EATON ELECTRIC cartridge fuse, BT 160 A, AC 400 V, NH00, gL/g..

NH FUSE 160A 400V GG/GL SIZE 00

160NHG00BI400

160NHG00BI-400

EATON - MOELLER

3 Pcs.

cartridge fuse, BT 160 A, AC 400 V, NH00, gL/gG, IEC, indicator double, terminals, insulated metal 160 A,AC 400V NH 00 Fuse with Insul Lugs Eaton Bussmann series low voltage NH Fuse, 160 A, 400 V, 120 kAIC, 7.8 Watt, Blade end Fuse, fuse-link, low voltage, 160 A, AC 400 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
160NHG00BI-400
EAN
5027590437233
UPC
051712233415
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
197 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
160 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 160NHG00BI-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH00
Voltage type (EF000187) AC
Rated current (EF000227) 160 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 7.8 W
