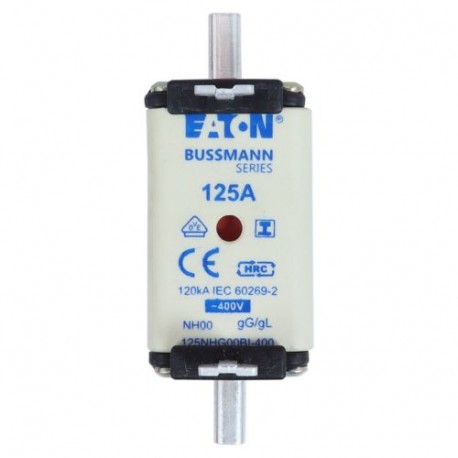

EATON - MOELLER NH FUSE 125A 400V GG/GL SIZE 00 NH FUSE 125A 400V GG/GL SIZE 00 125NHG00BI-400 EATON ELECTRIC fuse link, LV 125 A, AC 400 V, NH00, gL/gG, IE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 125A 400V GG/GL SIZE 00 125NHG00BI-400 EATON ELECTRIC fuse link, LV 125 A, AC 400 V, NH00, gL/gG, IE..

NH FUSE 125A 400V GG/GL SIZE 00

125NHG00BI400

125NHG00BI-400

EATON - MOELLER

3 Pcs.

fuse link, LV 125 A, AC 400 V, NH00, gL/gG, IEC, indicator double, terminals, insulated metal 125A 400V AC Fuse Links with Insul Lugs Eaton Bussmann series low voltage NH Fuse, 125 A, 400 V, 120 kAIC, 7 Watt, Blade end Fuse, fuse-link, low voltage, 125 A, AC 400 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
125NHG00BI-400
EAN
5027590429948
UPC
051712233408
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
197 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
125 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 125NHG00BI-400 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH00
Voltage type (EF000187) AC
Rated current (EF000227) 125 A
Rated voltage AC (EF007682) 400 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 7 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
