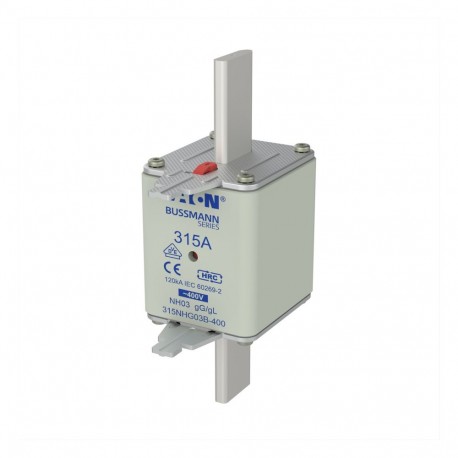

NH FUSE 315A 400V GG/GL SIZE 03 315NHG03B-400 EATON ELECTRIC Fuse-link, LV, 250 A, AC 400 V, NH03, gL/gG, IE..
NH FUSE 315A 400V GG/GL SIZE 03
315NHG03B400
315NHG03B-400
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Fuse-link NH FUSE 315A 400V GG/GL SIZE 03 from Eaton Moeller acts as a heavy-duty circuit protection element designed to handle high current loads in large commercial and industrial electrical distribution infrastructure. These devices maintain system safety by safely clearing overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH03
- Voltage type (EF000187): AC
- Rated current (EF000227): 315 A
- Rated voltage AC (EF007682): 400 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 19 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
