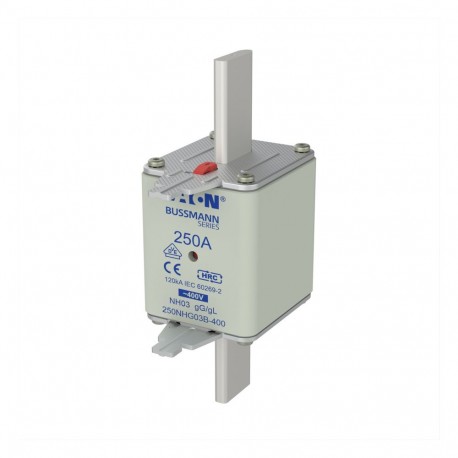

EATON - MOELLER NH FUSE 250A 400V GG/GL SIZE 03 NH FUSE 250A 400V GG/GL SIZE 03 250NHG03B-400 EATON ELECTRIC Fuse-link, LV, 250 A, AC 400 V, NH02, gL/gG, IE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 250A 400V GG/GL SIZE 03 250NHG03B-400 EATON ELECTRIC Fuse-link, LV, 250 A, AC 400 V, NH02, gL/gG, IE..

NH FUSE 250A 400V GG/GL SIZE 03

250NHG03B400

250NHG03B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 250 A, AC 400 V, NH02, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 250A 400V GG/GL SIZE 03 Fuse, fuse-link, low voltage, 250 A, AC 400 V, NH03, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect industrial cables and electrical distribution networks against damaging fault currents with the Eaton Moeller NH FUSE 250A 400V GG/GL SIZE 03. High-capacity fuse-links ensure safe circuit interruption during electrical overloads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH03
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 250 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 18 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
250NHG03B-400
Model Code
NH FUSE 250A 400V GG/GL SIZE 03
EAN
5027590469616
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
657 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
250 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH03
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch BVL50

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
