View larger
Images are for illustrative purposes only. Please refer to data sheet for details

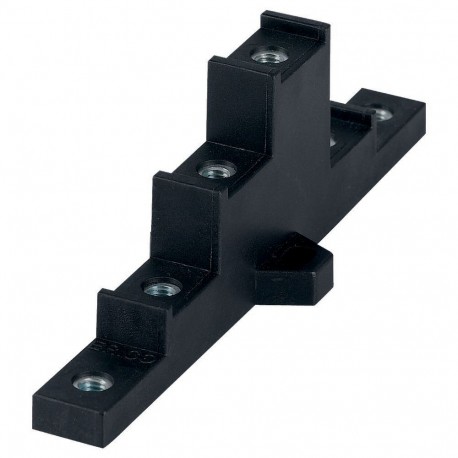

BPZ-BBS-4/250 289868 Y7-289868 EATON ELECTRIC 289868 BPZ-BBS-4/250
BPZ-BBS-4/250
289868
Y7-289868
EATON - MOELLER
1 Pcs.
289868 BPZ-BBS-4/250
BPZ-BBS-4/250
Eaton xEnergy Basic LV systems Low voltage switchgear. Busbar support 250A
Service distribution system—Profi Plus (floor standing distribution board, wall-mounting/flush-mounted distribution board)
Automation > Distributor assembly busbars
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Basic other accessory
Catalog Number
289868
Model Code
BPZ-BBS-4/250
EAN
4015082898687
Product Length/Depth
150 mm
Product Height
40 mm
Product Width
50 mm
Product Weight
0.078 kg
Compliances
RoHS conform
Delivery program
Amperage rating
250 A
Number of poles
Four-pole
Technical data - electrical
Current rating - max
250 A
Rated short-time withstand current (Icw)
15 kA
Technical data - mechanical
Mounting method
Surface mounting
Floor standing distribution board
Floor standing distribution board
Mounting position
Universal
Material
Plastic
Busbar distance
20 mm
Busbar height
5 mm
Busbar position
Bottom rear
Busbar thickness - max
20 mm
Additional information
Functions
Additional equipment
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 40 mm |
| Width (EF000008) | 50 mm |
| Depth (EF000049) | 150 mm |
| With cover (EF000361) | No |
| Number of poles (EF001391) | 4 |
| Busbar distance (EF002638) | 20 mm |
| Rail height (EF002639) | 5 mm |
| Busbar thickness (EF002640) | 20 mm |
| Max. rated current (EF007926) | 250 A |
| Short-circuit breaking capacity (Icw) (EF002562) | 15 kA |
| Busbar position (EF009592) | Bottom rear |
