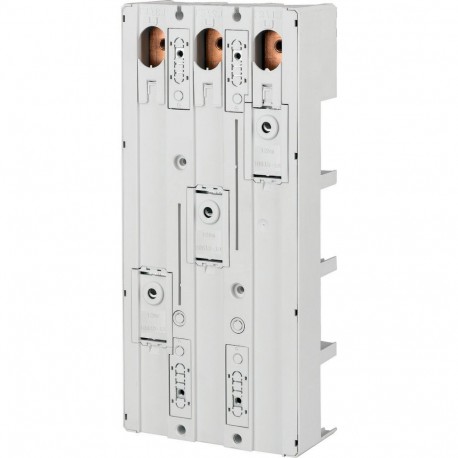

NZM3-XAD630 107206 Y7-107206 EATON ELECTRIC Busbar adapter, 3p, for NZM3, 630A, UL508
NZM3-XAD630
107206
Y7-107206
EATON - MOELLER
1 Pcs.
Automation > Busbar adapter
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to accommodate NZM3 circuit breakers, the Eaton Moeller NZM3-XAD630 busbar adapter integrates heavy-duty switching components onto standard distribution busbars. These specialized adapters ensure proper alignment and secure current transfer in industrial power panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current In (EF008250): 630 A
- Min. busbar thickness (EF006536): 5 mm
- Max. busbar thickness (EF003702): 10 mm
- Width of the adapter (EF003703): 140 mm
- Rail width (EF003704): 30 mm
- Busbar distance (EF002638): 60 mm
More info
▲General specifications
IEC 60439-1
UL508A
CE marking
CSA-C22.2 No. 14
RoHS conform
CSA (File No. 236217)
UL (File No. E300273)
UL (Category Control Number NMTR, NMTR7)
CSA (Class No. 3211-37)
Delivery program
Technical data - electrical
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
Current limiting circuit breaker, refer to approbation report
Component adapter for circuit breakers and switch-disconnector
NZM3
PN3
Feeder circuits
Busbar adapters for NZM
60 mm system
