View larger
Images are for illustrative purposes only. Please refer to data sheet for details

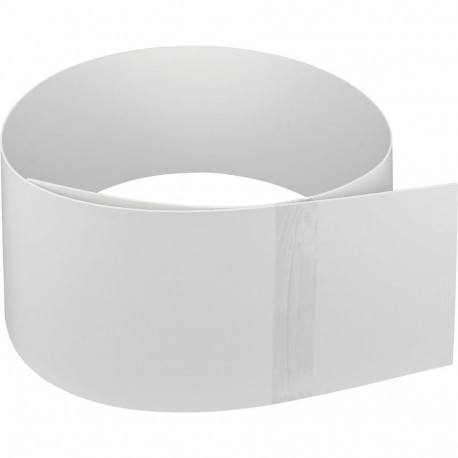

BPZ-SCH202 144015 Y7-144015 EATON ELECTRIC Partition, vertical and horizontal
BPZ-SCH202
144015
Y7-144015
EATON - MOELLER
1 Pcs.
Partition, vertical and horizontal
BPZ-SCH202
The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies
Automation > Separation plate for meter-/distribution boards
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Partition, vertical and horizontal
The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies
General specifications
Product name
Eaton xEnergy Basic installation component
Part no.
BPZ-SCH202
EAN
4015081405497
Product Length/Depth
2 millimetre
Product height
1920 millimetre
Product width
135 millimetre
Product weight
0.55 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Installation component
Technical Data - Mechanical
Surface protection
Primed
Material
Plastic
Technical data ETIM 9.0
Distribution boards (EG000023) / Separation plate for meter-/distribution boards (EC000770)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (including small distribution board) / Separation plate for meter-/distribution boards (ecl@ss13-27-14-24-12 [ACN393016])
Height
1920 mm
Width
135 mm
Material
Plastic
Surface protection
Primed
With connector openings
No
Arc-proof
No
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 1920 mm |
| Width (EF000008) | 135 mm |
| Material (EF002169) | Plastic |
| Surface protection (EF000139) | Primed |
| With connector openings (EF001132) | No |
| Arc-proof (EF009409) | No |
