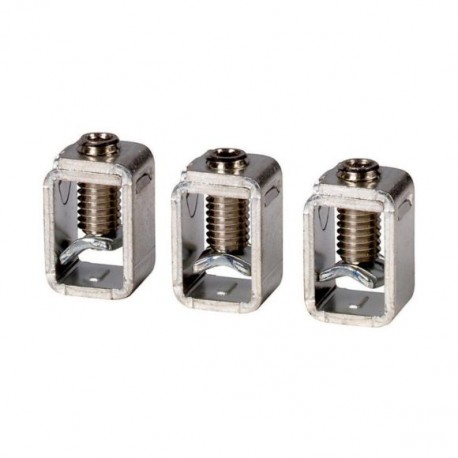

EATON - MOELLER +NZM3-XKCU +NZM3-XKCU 262245 Y7-262245 EATON ELECTRIC Box terminal, 3p, bottom up to 630A. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+NZM3-XKCU 262245 Y7-262245 EATON ELECTRIC Box terminal, 3p, bottom up to 630A. Can only be sold assembled.

+NZM3-XKCU

262245

Y7-262245

EATON - MOELLER

1 Pcs.

Box terminal, 3p, bottom up to 630A. Can only be sold assembled. +NZM3-XKCU Box terminal, 3p, bottom up to 630A Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. suffix and part no. contain parts for a circuit-breaker side at top or bottom for 3 or 4 pole circuit-breakers. Conversion kit for circuit-breaker with screw connection. Fitted within the switch housing. O = for fitting at the top. U = for fitting at the bottom. U e ≧ 525 VAC. use NZM3(-4)-XKSA cover. Use ferrules with flexible and highly flexible conductors., observe limited terminal capacity through sleeve . Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)

Automation > Wiring set for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Box terminal, 3p, bottom up to 630A
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. suffix and part no. contain parts for a circuit-breaker side at top or bottom for 3 or 4 pole circuit-breakers. Conversion kit for circuit-breaker with screw connection. Fitted within the switch housing. O = for fitting at the top. U = for fitting at the bottom. U e ≧ 525 VAC. use NZM3(-4)-XKSA cover. Use ferrules with flexible and highly flexible conductors., observe limited terminal capacity through sleeve . Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)

General specifications
Product name
Eaton Moeller series NZM - Molded Case Circuit Breaker
Part no.
+NZM3-XKCU
EAN
4015082622459
Product Length/Depth
120.5 millimetre
Product height
275 millimetre
Product width
140 millimetre
Product weight
0.134 kilogram
Compliances
UL/CSA
IEC
RoHS conform
Certifications
UL (Category Control Number DIHS)
UL listed
UL489
CSA (File No. 22086)
IEC60947
CSA certified
UL (File No. E31593)
CE marking
CSA-C22.2 No. 5-09
Product Tradename
NZM
Product Type
Molded Case Circuit Breaker
Product Sub Type
None
Delivery program
Type
AccessoryBox terminalTerminal
Number of poles
Three-pole
Amperage Rating
≦ 630 A
Frame
NZM3
Suitable for
Copper cable
Three-pole
Used with
NZM3(-4), PN3(-4), N(S)3(-4)
Technical Data - Mechanical
Mounting position
Fitted at the bottom
Technical Data - Mechanical - Terminals
Terminal capacity (stranded cable)
16 mm² - 120 mm² (2x)
2 - 500 AWG/kcmil (1x)
35 mm² - 240 mm² (1x)
Terminal capacity (copper strip)
630 A: 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm or 8 segments of 24 mm x 1 mm (2x)
Max. 500 A: 6 segments of 16 mm x 0.8 mm - 10 segments of 24 mm x 1 mm or 11 segments of 21 mm x 1 mm
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Model
Other

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Wiring set for power circuit breaker (EC002050)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Wiring set for circuit breaker (ecl@ss13-27-37-04-24 [ACN957016])
Suitable for number of poles
3
Model
Other

ETIM for 262245 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 3
Model (EF000010) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
