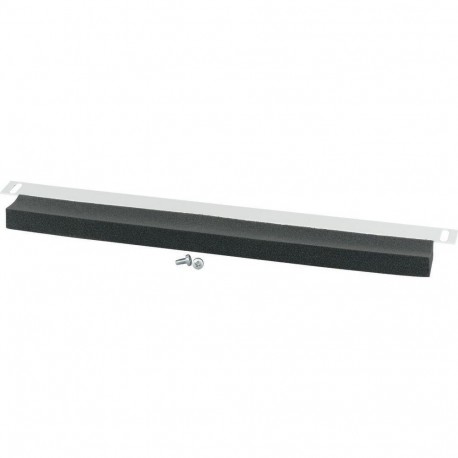

EATON - MOELLER XLST2J8C XLST2J8C 107681 Y7-107681 EATON ELECTRIC Bottom plate, XE, +foam, for B 800 mm, IP20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST2J8C 107681 Y7-107681 EATON ELECTRIC Bottom plate, XE, +foam, for B 800 mm, IP20

XLST2J8C

107681

Y7-107681

EATON - MOELLER

1 Pcs.

Bottom plate, XE, +foam, for B = 800 mm, IP20 XLST2J8C Eaton xEnergy Light LV systems LV switchgear. Bottom/Top coverstrip 75mm long, 35mm blind + 40mm foam gasket, IP20, for 800mm Sectionwidth, grey Bottom/Top coverstrip 75mm long, 35mm blind + 40mm foam gasket, IP20, for 800mm Sectionwidth, material thickness 1.5 mm, in RAL 7035 structure finish

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XLST2J8C 107681 Y7-107681 EATON ELECTRIC Bottom plate, XE, +foam, for B 800 mm, IP20 floor plates are positioned at the bottom opening of industrial enclosures to seal the base against dust while accommodating incoming cabling. Foam gasketing provides a reliable barrier at the base of the cabinet.

Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Floor plate
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 75 mm
  • Height (EF000040): 20 mm
  • Depth (EF000049): 700 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
107681
Model Code
XLST2J8C
EAN
4015081073467
Product Length/Depth
700 mm
Product Height
20 mm
Product Width
75 mm
Product Weight
0.4 kg
Compliances
RoHS conform

Product specifications

Special features
Bottom plates as blanking coversadjustable from 60 - 75 mmCable bushings <=; ∅ 50 mm possible when using 2 XSPBA…∅ 50 - 80 mm cable bushings possible when using an XSPBA… in conjunction with XVTL-BP/JLIncluding screws
Type
AccessoryControl centres XVTL
Accessory/spare part type
Bottom plate
Surface finishing
RAL 7035, light gray
Used with
Accessory
Control centres XVTL
Color
Gray
Unit type
Accessories
Cableway capacity - max
50 mm
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
800 mm
Suitable for length/depth
75 mm
Suitable for width
800 mm
Material
Metal
Housing material
Sheet steel 1.5 mm
Model
Floor plate
Functions
For downward separation and for cable entries
