View larger
Images are for illustrative purposes only. Please refer to data sheet for details

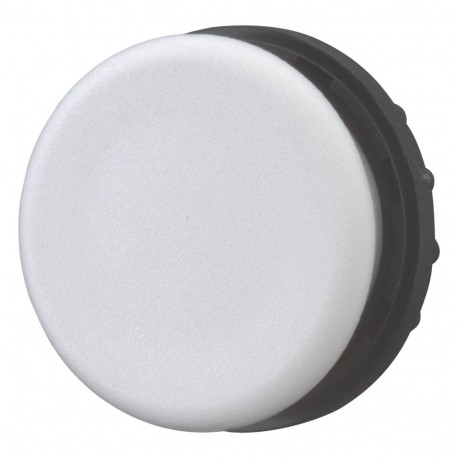

M22-B 216388 Y7-216388 EATON ELECTRIC Blanking plug, gray
M22-B
M22-B
Y7-216388
EATON - MOELLER
1 unit
Blanking plug, gray
M22-B
Eaton Moeller® series M22 Blanking plug, gray
Blanking plug, General accessories, Function: For closing off of spare mounting locations, Material: plastic, Degree of Protection: IP66, IP67, IP69K, Color light grey, RAL 7035, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no
Automation > Blind cover for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 blanking plug |
| Catalog Number | 216388 |
| Model Code | M22-B |
| EAN | 4015082163884 |
| Product Length/Depth | 30 mm |
| Product Height | 30 mm |
| Product Width | 30 mm |
| Product Weight | 0.006 kg |
| Certifications | CE |
Product specifications
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Connection to SmartWire-DT | No |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Opening diameter | 22 mm |
| Opening height | 0 mm |
| RAL-number | 7035 |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Color | Gray |
| Material | Plastic |
| Degree of protection | NEMA 12 NEMA 3R IP69K IP66 NEMA 13 IP67 NEMA 4X |
| Degree of protection (front side) | NEMA Other IP67/IP69K |
| Functions | For closing off of spare mounting locations |
| Lens type | Round |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Width opening | 0 mm |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Plastic |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Colour (EF000007) | Grey |
