View larger
Images are for illustrative purposes only. Please refer to data sheet for details

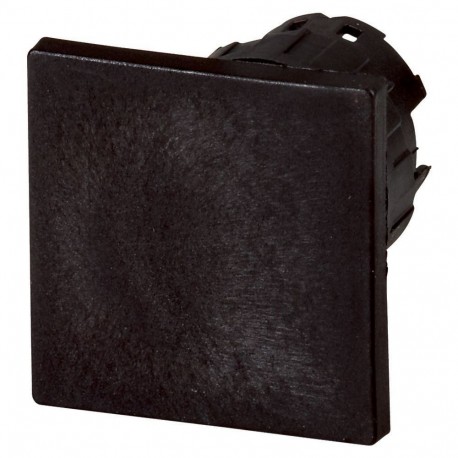

Q25BS 036976 Y7-36976 EATON ELECTRIC Blanking plug, black, IP65 x
Q25BS
036976
Y7-36976
EATON - MOELLER
10 Pcs.
Blanking plug, black, IP65_x
Shutter cap 16 mm 25x25 mm Black
Eaton Moeller® series RMQ16 Blanking plug, black, IP65_x Q25BS
Blanking plug, Product range: Accessories, Function: For closing off of spare mounting locations, Single unit, Type: For grid spacing 25 x 25 mm, Degree of Protection: IP65, black, Connection to SmartWire-DT: no
Automation > Blind cover for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series RMQ16 Accessory Blanking plug
Catalog Number
036976
Model Code
Q25BS
EAN
4015080369769
Product Length/Depth
27 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
0.004 kg
Certifications
UL/CSA certification not required
Features & Functions
Color
Black
Functions
For closing off of spare mounting locations
Material
Plastic
General
Degree of protection
IP65
Opening diameter
16 mm
Product category
Accessories
Type
For grid spacing 25 x 25 mm
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Communication
Connection to SmartWire-DT
No
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Plastic |
| Construction type lens (EF006253) | Square |
| Hole diameter (EF000079) | 16 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Colour (EF000007) | Black |
