View larger
Images are for illustrative purposes only. Please refer to data sheet for details

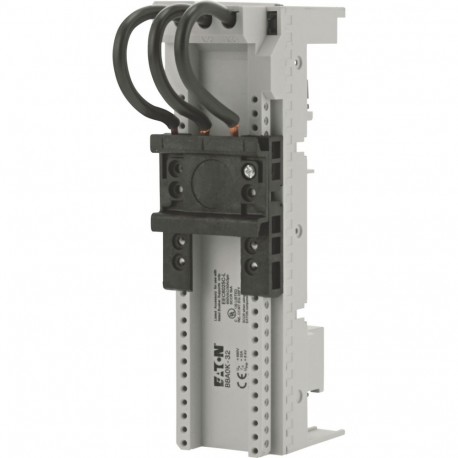

BBA0K-32-PI 199635 EATON ELECTRIC Sweeper adapter 45mm 32A 1TS Push-in
BBA0K-32-PI
199635
Y7-199635
EATON - MOELLER
4 Pcs.
Sweeper adapter 45mm 32A 1TS; Push-in
45mm busbar adapter for 60mm busbar system, one mounting rail, three prefabricated cables (AWG10/6 square millimeter) for connection of switching device, can be used for motor-protective circuit-breaker PKZM0, PKE contactor or DILM7 to DILM32, rated operational current: 32A
Automation > Busbar adapter
Circuit Breakers PKZ
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product name
Eaton Moeller® series BBA accessory - Busbar adapter
Catalogue code
199635
Ean
4015081983360
Product length/depth
200 mm
Product height
73 mm
Product width
45 mm
Product weight
0.224 kg
Certification(s)
Ec
Model code
BBA0K-32-PI
Delivery program
type
Rated current
32 A
Technical data - electrical
AC voltage rating
690 V
Rated operating current (Ie)
32 A
Type of electrical connection
3 Conductors AWG 10
Push-in terminals
Push-in terminals
Technical data - mechanical
DIN rail configuration
1 x Fixed Mounting Rail
Guide width
20 mm
Number of DIN Rails
1
Busbar distance
60 mm
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Adapter width
45 mm
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Additional information
Special features
Clamp capacity: 6 mm² (AWG 10)
| Feature Name | Feature Value |
|---|---|
| Mounting rail armament (EF003700) | 1 mounting rail |
| Type of electric connection (EF003961) | 3 conductors AWG 10 |
| Rated current In (EF008250) | 32 A |
| Min. busbar thickness (EF006536) | 5 mm |
| Max. busbar thickness (EF003702) | 10 mm |
| Width of the adapter (EF003703) | 45 mm |
| Rail width (EF003704) | 20 mm |
| Busbar distance (EF002638) | 60 mm |
