View larger
Images are for illustrative purposes only. Please refer to data sheet for details

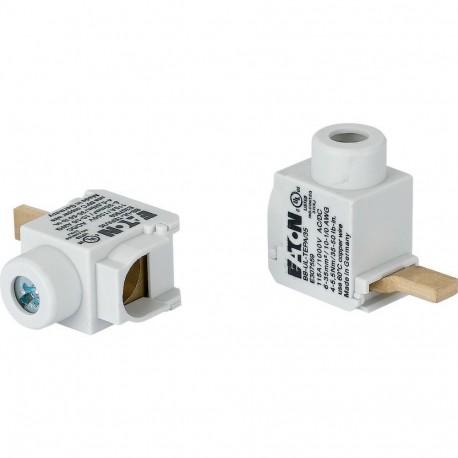

BB-UL-TEPA/35 169823 Y7-169823 EATON ELECTRIC 169823 BB-UL-TEPA/35
BB-UL-TEPA/35
169823
Y7-169823
EATON - MOELLER
10 Pcs.
169823 BB-UL-TEPA/35
BB-UL-TEPA/35
Eaton Distribution parts. Connection clamp, TEPA/35
Accessory for busbar system
Automation > Busbar terminal
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
169823
Model Code
BB-UL-TEPA/35
EAN
4015081663187
Product Length/Depth
31.1 mm
Product Height
82.6 mm
Product Width
16.2 mm
Product Weight
0.036 kg
Compliances
RoHS conform
Product specifications
Used with
Busbar
BB-UL
BB-UL
Type
Accessory/spare part type
Extension terminals
Width clamp
0 mm
Application
Switchgear for industrial and advanced commercial applications
Busbar thickness - max
0 mm
Busbar thickness - min
0 mm
Busbar width - max
0 mm
Busbar width - min
0 mm
Conductor cross section - max
35 mm²
Rated operational current (Ie) - max
0 A
Functions
Busbar
Suitable for
Round conductor connection
Other
Other
Rated operational current
0 A
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 0 mm |
| Busbar width (EF007219) | 0 mm |
| Suitable for (EF000073) | Other |
| Width clamp (EF007092) | 0 mm |
| Max. conductor cross section (EF004969) | 35 mm² |
| Max. rated operation current Ie (EF007356) | 0 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | No |
