View larger
Images are for illustrative purposes only. Please refer to data sheet for details

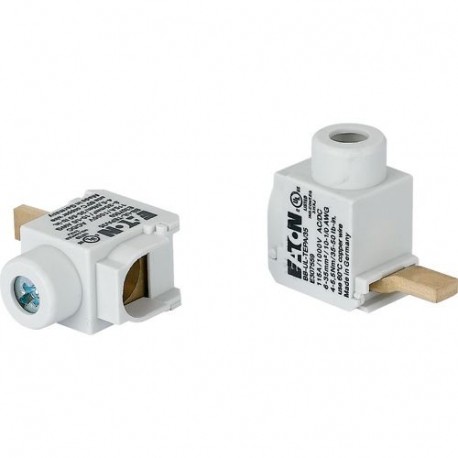

BB-UL-TE/50 121998 Y7-121998 EATON ELECTRIC 121998 BB-UL-TE/50
BB-UL-TE/50
121998
Y7-121998
EATON - MOELLER
1 Pcs.
121998 BB-UL-TE/50
BB-UL-TE/50
Eaton Distribution parts. Connection clamp, TE/50
Accessory for busbar system
Automation > Busbar terminal
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
121998
Model Code
BB-UL-TE/50
EAN
4015081201983
Product Length/Depth
40 mm
Product Height
30 mm
Product Width
18 mm
Product Weight
0.031 kg
Compliances
RoHS conform
Product specifications
Type
Accessory/spare part type
Extension terminals
Used with
BB-UL
Busbar
Busbar
Width clamp
0 mm
Application
Switchgear for industrial and advanced commercial applications
Busbar thickness - max
0 mm
Busbar thickness - min
0 mm
Busbar width - max
0 mm
Busbar width - min
0 mm
Conductor cross section - max
25 mm²
Rated operational current (Ie) - max
100 A
Functions
Busbar
Suitable for
Other
Rated operational current
100 A
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 0 mm |
| Busbar width (EF007219) | 0 mm |
| Suitable for (EF000073) | Other |
| Width clamp (EF007092) | 0 mm |
| Max. conductor cross section (EF004969) | 25 mm² |
| Max. rated operation current Ie (EF007356) | 100 A |
| Suitable for round conductor connection (EF007258) | No |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | No |
