View larger
Images are for illustrative purposes only. Please refer to data sheet for details

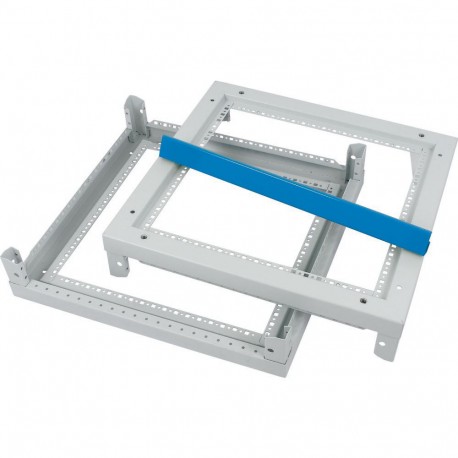

XSFB0602 150465 Y7-150465 EATON ELECTRIC Basic frame, for WxD 600x1000mm
XSFB0602
150465
Y7-150465
EATON - MOELLER
1 Pcs.
Basic frame, for WxD=600x1000mm
XSFB0602
Eaton xEnergy Main LV systems LV switchgear. Basic frame, for WxD=600x1000mm, gray
Frame for empty section, upper and lower frame, with RAL 5017 branding strip, steel plate, including mounting material, powder-spray painted, width 600 mm, depth 200 mm, RAL 7035
Automation > Base/base element (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
150465
Model Code
XSFB0602
EAN
4015081468058
Product Length/Depth
600 mm
Product Height
250 mm
Product Width
400 mm
Product Weight
8.996 kg
Compliances
RoHS conform
Product specifications
Features
EMC-version
Connectable
Mounting plate depth-adjustable
Connectable
Mounting plate depth-adjustable
Surface finishing
Powder coating
Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building length/depth
200 mm
Suitable for enclosure building width
600 mm
Material
Steel
Model
Base stabilization profile
Impact strength
IK10
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Base stabilization profile |
| Material (EF002169) | Steel |
| Colour (EF000007) | Grey |
| Max. load capacity (EF000258) | 0 kg |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building depth (EF000327) | 200 mm |
| Suitable for aeration/de-aeration (EF000324) | No |
| Suitable for cable patch (EF007251) | No |
| Width (EF000008) | 400 mm |
| Height (EF000040) | 250 mm |
| Depth (EF000049) | 600 mm |
