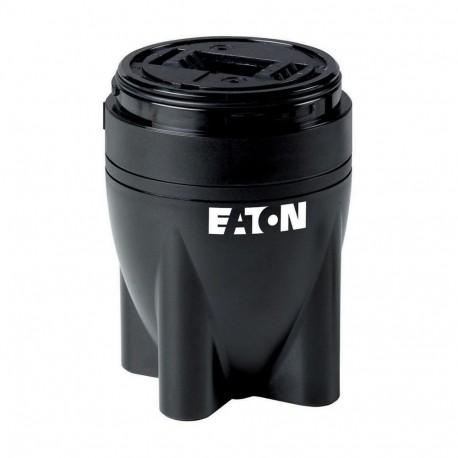

EATON - MOELLER SL7-CB-IMS SL7-CB-IMS 171448 Y7-171448 EATON ELECTRIC Base with internal fixing screw View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-CB-IMS 171448 Y7-171448 EATON ELECTRIC Base with internal fixing screw

SL7-CB-IMS

171448

Y7-171448

EATON - MOELLER

1 Pcs.

Base with internal fixing screw SL7-CB-IMS Eaton Moeller® series SL7 Base module;internal fixing screw Base module, Color black, Product range: SL signal towers, Connection technique: Spring-loaded terminals, Mounting type: for horizontal mounting, Fitted with: Base with built-in (pre-assembled) fixing screws, including cover, Number of modules: max. 5 modules, For use with: SL7-L-…, SL7-BL-…, SL7-FL-…, SL7-AP-…, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 4, 4X, 13

Automation > Connection module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SL7-CB-IMS base features an internal fixing screw mechanism, allowing clean and secure surface mounting for industrial signaling column assemblies. Bases with internal fasteners offer a streamlined aesthetic and prevent tampering or external environmental exposure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Suitable for tube mounting (EF001668): No
  • Suitable for angle mounting (EF001669): Yes
  • Suitable for floor mounting (EF025108): Yes
  • Suitable for AS interface (EF005768): No
  • Suitable for M12 connector (EF017873): No
  • Suitable for IO link (EF017874): No

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Base module
Catalog Number
171448
Model Code
SL7-CB-IMS
EAN
4015081677788
Product Length/Depth
73 mm
Product Height
90 mm
Product Width
73 mm
Product Weight
0.194 kg
Certifications
CE
IEC/EN 60947-5-1
UL
CSA-C22.2 No. 14-10
UL report applies to both US and Canada
CSA Class No.: NKCR7
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
IEC/EN 60529
UL 508
Certified by UL for use in Canada
UL File No.: E29184

Features & Functions

Color
Other
Fitted with:
Cover
Built-in (pre-assembled) fixing screws
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Degree of protection
IP66
NEMA 13
NEMA 4
NEMA 4X
Mounting Method
Floor
Bracket
Horizontal
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Base module

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (AWG)
24 - 14
Terminal capacity (flexible with ferrule and plastic collar)
0.25 - 1.5 mm²
Terminal capacity (solid/flexible)
0.13 - 2.5 mm²

Electrical rating

Rated insulation voltage (Ui)
250 V
Rated operational voltage
110/120 V AC ± 10 %
24 V AC/DC ± 10 %
230/240 V AC ± 10 %

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
