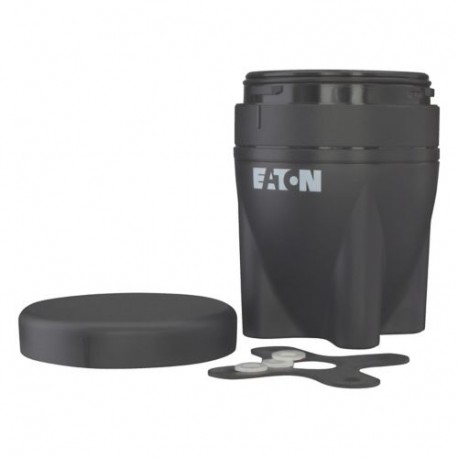

EATON - MOELLER SL7-CB-IMH SL7-CB-IMH 171447 Y7-171447 EATON ELECTRIC Base with internal fastening holes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-CB-IMH 171447 Y7-171447 EATON ELECTRIC Base with internal fastening holes

SL7-CB-IMH

171447

Y7-171447

EATON - MOELLER

1 Pcs.

Base with internal fastening holes SL7-CB-IMH Eaton Moeller® series SL7 Base module;internal fixing holes Base module, Color black, Product range: SL signal towers, Connection technique: Spring-loaded terminals, Mounting type: for horizontal mounting, Fitted with: Base with internal (on the inside) fixing holes, including cover, Number of modules: max. 5 modules, For use with: SL7-L-…, SL7-BL-…, SL7-FL-…, SL7-AP-…, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 1

Automation > Connection module for signal tower
Auxiliary Control and Signalling Elements
