BP-MF-800/10 286665 Y7-286665 EATON ELECTRIC Surface-mount service distribution board base frame HxW 1060 x ..
BP-MF-800/10
286665
Y7-286665
EATON - MOELLER
1 Pcs.

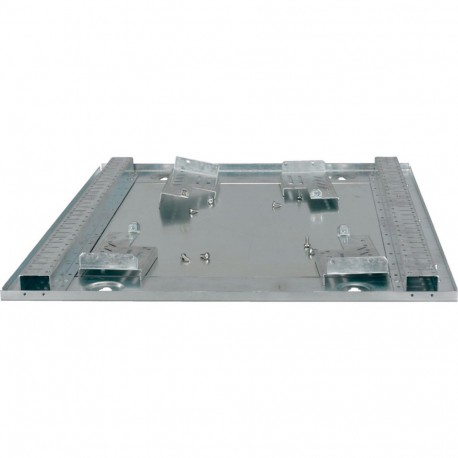

Surface-mount service distribution board base frame HxW = 1060 x 800 mm
BP-MF-800/10
Base frame, BP-MF for surface-mount service distribution board, width 800 mm, outside height 1060 mm, front plate height 950 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories
Automation > Enclosure/switchgear cabinet (empty)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Surface-mount service distribution board base frame HxW 1060 x .. supplied by Eaton Moeller as BP-MF-800/10 286665 Y7-286665 EATON ELECTRIC provides a sturdy foundation frame for surface-mounted electrical distribution boards and metering hubs. Base frames ensure accurate alignment and rigid wall mounting for modular service panels deployed in commercial buildings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 815 mm
- Height (EF000040): 1080 mm
- Depth (EF000049): 50 mm
- Material (EF002169): Steel
- Surface finishing (EF006569): Galvanised
- Colour (EF000007): Stainless steel
- RAL-number (EF000116): 0
- Freestanding (EF020363): No
- Floor standing wall model (EF015208): No
- Suitable for wall mounting (EF000664): Yes
- Corner model (EF020814): No
- Intermediate mounting (EF022994): No
- Couplable (EF001229): Yes
- With mounting plate (EF000118): No
- Mounting plate depth-adjustable (EF006054): No
- Suitable for wall built-in (EF007536): No
More info
▲Surface-mount service distribution board base frame HxW = 1060 x 800 mm
Base frame, BP-MF for surface-mount service distribution board, width 800 mm, outside height 1060 mm, front plate height 950 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories
General specifications
Product name
Eaton xEnergy Basic frame
Part no.
BP-MF-800/10
EAN
4015082866655
Product Length/Depth
50 millimetre
Product height
1080 millimetre
Product width
815 millimetre
Product weight
12.1 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Frame
Delivery program
Type
Additional equipment
Color
Stainless steel
Technical Data - Mechanical
Surface finishing
Galvanized
Mounting method
Surface mounting
Wall fastening
Wall fastening
Material
Steel
Sheet steel
Sheet steel
Degree of protection
IP30
IK08 (impact resistance)
Other
IK08 (impact resistance)
Other
Number of connector holes
0
Number of covers/doors
0
Number of locks
0
Permissible load of the door(s) according to IEC 62208 - max
0 N
Permissible load of the enclosure according to IEC 62208 - max
0 N
Permissible load of the mounting plate according to IEC 62208 - max
0 N
Grade material
Sheet steel
Installation type
Floor installation possible
Suitable for width
800 mm
Temperature-rise verification as per IEC 60890
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Additional information
Features
Connectable
EMC-version
EMC-version
Functions
Additional equipment
RAL-number
0
Suitable for
Metrical mounting
Technical data ETIM 9.0
Cabinet enclosures (EG000011) / Enclosure/cabinet (empty) (EC000261)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Electrical cabinet (empty) / Electrical cabinet, Empty enclosures (ecl@ss13-27-18-01-01 [AGZ056021])
Width
815 mm
Height
1080 mm
Depth
50 mm
Material
Steel
Material quality
Other
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
Freestanding
No
Floor standing wall model
No
Suitable for wall mounting
Yes
Corner model
No
Intermediate mounting
No
Couplable
Yes
With mounting plate
No
Mounting plate depth-adjustable
No
Suitable for wall built-in
No
Pole fastening
No
With door
No
Number of doors
0
With glazed door
No
With ventilation door
No
With rear door
No
Number of locks
0
With cover
No
Transparent cover
No
Suitable for metrical mounting
Yes
Suitable for outdoor set-up
No
Pitched roof
No
Number of connector holes
0
Pre-stamping
No
EMC-version
Yes
Impact strength
IK08
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Other
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Max. permissible load of the enclosure according to IEC 62208
0 N
Max. permissible load of the door(s) according to IEC 62208
0 N
Max. permissible load of the mounting plate according to IEC 62208
0 N
