Surface-mount service distribution board base frame HxW = 460 x 600 mm
BP-MF-600/4
Eaton xEnergy Basic LV systems Low voltage switchgear. Surface-mount service distribution board base frame HxW = 460 x 600 mm

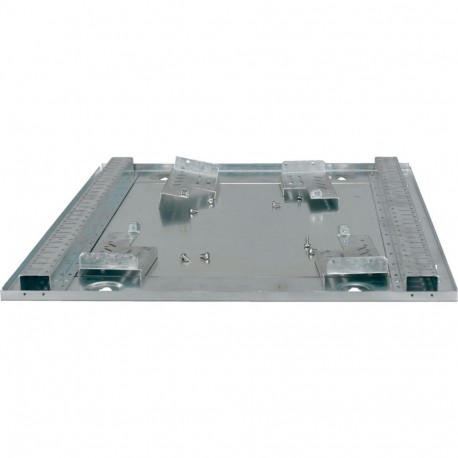

Base frame, BP-MF for surface-mount service distribution board, width 600 mm, outside height 460 mm, front plate height 350 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories
Automation > Enclosure/switchgear cabinet (empty)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The BP-MF-600/4 Eaton Moeller surface-mount service distribution board base frame acts as the foundational structural skeleton for modular distribution panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width: 615 mm
- Height: 480 mm
- Depth: 50 mm
- Material: Steel
- Surface finishing: Galvanised
- Colour: Stainless steel
- RAL-number: 0
- Freestanding: No
- Floor standing wall model: No
- Suitable for wall mounting: Yes
- Corner model: No
- Intermediate mounting: No
- Couplable: Yes
- With mounting plate: No
- Mounting plate depth-adjustable: No
- Suitable for wall built-in: No
More info
▲General specifications
Product Name
Eaton xEnergy Basic frame
Catalog Number
286658
Model Code
BP-MF-600/4
EAN
4015082866587
Product Length/Depth
50 mm
Product Height
480 mm
Product Width
615 mm
Product Weight
5.4 kg
Compliances
RoHS conform
Delivery program
Type
Additional equipment
Color
Stainless steel
Technical data - mechanical
Surface finishing
Galvanized
Mounting method
Surface mounting
Wall fastening
Wall fastening
Material
Sheet steel
Steel
Steel
Material quality
Other
Number of connector holes
0
Number of covers/doors
0
Number of locks
0
Permissible load of the door(s) according to IEC 62208 - max
0 N
Permissible load of the enclosure according to IEC 62208 - max
0 N
Permissible load of the mounting plate according to IEC 62208 - max
0 N
Grade material
Sheet steel
Installation type
Floor installation possible
Suitable for height
460 mm
Suitable for width
600 mm
Temperature-rise verification as per IEC 60890
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Additional information
Features
Connectable
EMC-version
EMC-version
Functions
Additional equipment
RAL-number
0
Suitable for
Metrical mounting
