EATON - MOELLER BP-MF-400/15 BP-MF-400/15 286657 Y7-286657 EATON ELECTRIC Surface-mount service distribution board base frame HxW 1560 x .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BP-MF-400/15 286657 Y7-286657 EATON ELECTRIC Surface-mount service distribution board base frame HxW 1560 x ..

BP-MF-400/15

286657

Y7-286657

EATON - MOELLER

1 Pcs.

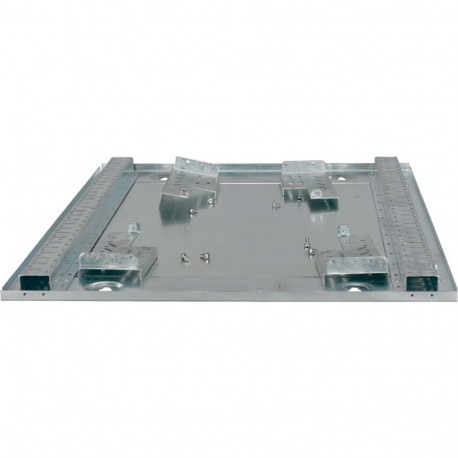

Surface-mount service distribution board base frame HxW = 1560 x 400 mm BP-MF-400/15 Base frame, BP-MF for surface-mount service distribution board, width 400 mm, outside height 1560 mm, front plate height 1450 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories

Automation > Enclosure/switchgear cabinet (empty)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Surface-mount service distribution board base frame HxW = 1560 x 400 mm
Base frame, BP-MF for surface-mount service distribution board, width 400 mm, outside height 1560 mm, front plate height 1450 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories

General specifications
Product name
Eaton xEnergy Basic frame
Part no.
BP-MF-400/15
EAN
4015082866570
Product Length/Depth
50 millimetre
Product height
1580 millimetre
Product width
415 millimetre
Product weight
11.6 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Frame
Delivery program
Type
Additional equipment
Color
Stainless steel
Technical Data - Mechanical
Surface finishing
Galvanized
Mounting method
Surface mounting
Wall fastening
Material
Steel
Sheet steel
Degree of protection
IP30
IK08 (impact resistance)
Other
Number of connector holes
0
Number of covers/doors
0
Number of locks
0
Permissible load of the door(s) according to IEC 62208 - max
0 N
Permissible load of the enclosure according to IEC 62208 - max
0 N
Permissible load of the mounting plate according to IEC 62208 - max
0 N
Grade material
Sheet steel
Installation type
Floor installation possible
Suitable for width
400 mm
Temperature-rise verification as per IEC 60890
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Additional information
Features
Connectable
EMC-version
Functions
Additional equipment
RAL-number
0
Suitable for
Metrical mounting

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Enclosure/cabinet (empty) (EC000261)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Electrical cabinet (empty) / Electrical cabinet, Empty enclosures (ecl@ss13-27-18-01-01 [AGZ056021])
Width
415 mm
Height
1580 mm
Depth
50 mm
Material
Steel
Material quality
Other
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
Freestanding
No
Floor standing wall model
No
Suitable for wall mounting
Yes
Corner model
No
Intermediate mounting
No
Couplable
Yes
With mounting plate
No
Mounting plate depth-adjustable
No
Suitable for wall built-in
No
Pole fastening
No
With door
No
Number of doors
0
With glazed door
No
With ventilation door
No
With rear door
No
Number of locks
0
With cover
No
Transparent cover
No
Suitable for metrical mounting
Yes
Suitable for outdoor set-up
No
Pitched roof
No
Number of connector holes
0
Pre-stamping
No
EMC-version
Yes
Impact strength
IK08
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Other
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Max. permissible load of the enclosure according to IEC 62208
0 N
Max. permissible load of the door(s) according to IEC 62208
0 N
Max. permissible load of the mounting plate according to IEC 62208
0 N

ETIM for 286657 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 415 mm
Height (EF000040) 1580 mm
Depth (EF000049) 50 mm
Material (EF002169) Steel
Material quality (EF001257) Other
Surface finishing (EF006569) Galvanised
Colour (EF000007) Stainless steel
RAL-number (EF000116) 0
Freestanding (EF020363) No
Floor standing wall model (EF015208) No
Suitable for wall mounting (EF000664) Yes
Corner model (EF020814) No
Intermediate mounting (EF022994) No
Couplable (EF001229) Yes
With mounting plate (EF000118) No
Mounting plate depth-adjustable (EF006054) No
Suitable for wall built-in (EF007536) No
Pole fastening (EF009582) No
With door (EF009169) No
Number of doors (EF000122) 0
With glazed door (EF001089) No
With ventilation door (EF006279) No
With rear door (EF007381) No
Number of locks (EF000123) 0
With cover (EF007965) No
Transparent cover (EF011401) No
Suitable for metrical mounting (EF005823) Yes
Pitched roof (EF009278) No
Number of connector holes (EF005554) 0
Pre-stamping (EF001039) No
EMC-version (EF001062) Yes
Impact strength (EF004293) IK08
Degree of protection (IP) (EF005474) IP30
Degree of protection (NEMA) (EF011959) Other
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) 0 W
Max. permissible load of the enclosure according to IEC 62208 (EF014987) 0 N
Max. permissible load of the door(s) according to IEC 62208 (EF014988) 0 N
Max. permissible load of the mounting plate according to IEC 62208 (EF014989) 0 N
