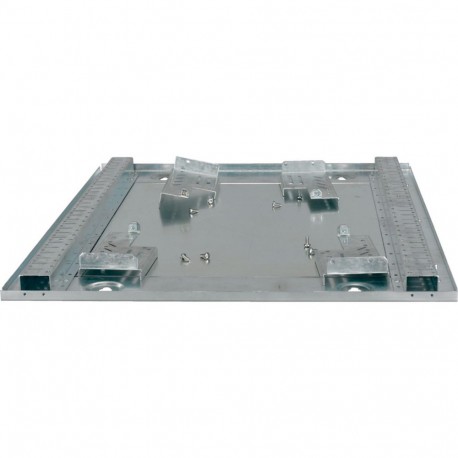

EATON - MOELLER BP-MF-400/4 BP-MF-400/4 286653 Y7-286653 EATON ELECTRIC Surface-mount service distribution board base frame HxW 460 x 40.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BP-MF-400/4 286653 Y7-286653 EATON ELECTRIC Surface-mount service distribution board base frame HxW 460 x 40..

BP-MF-400/4

286653

Y7-286653

EATON - MOELLER

1 Pcs.

Surface-mount service distribution board base frame HxW = 460 x 400 mm BP-MF-400/4 Eaton xEnergy Basic LV systems Low voltage switchgear. Surface-mount service distribution board base frame HxW = 460 x 400 mm Base frame, BP-MF for surface-mount service distribution board, width 400 mm, outside height 460 mm, front plate height 350 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories

Automation > Enclosure/switchgear cabinet (empty)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller BP-MF-400/4 surface-mount service distribution board base frame acts as the structural foundation for assembling electrical distribution panels and modular fuse assemblies. Base frames enable electricians to securely mount modular distribution components onto interior walls before final wiring takes place. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 415 mm
  • Height (EF000040): 480 mm
  • Depth (EF000049): 50 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • Freestanding (EF020363): No
  • Floor standing wall model (EF015208): No
  • Suitable for wall mounting (EF000664): Yes
  • Corner model (EF020814): No
  • Intermediate mounting (EF022994): No
  • Couplable (EF001229): Yes
  • With mounting plate (EF000118): No
  • Mounting plate depth-adjustable (EF006054): No
  • Suitable for wall built-in (EF007536): No

More info

▲

General specifications

Product Name
Eaton xEnergy Basic frame
Catalog Number
286653
Model Code
BP-MF-400/4
EAN
4015082866532
Product Length/Depth
50 mm
Product Height
480 mm
Product Width
415 mm
Product Weight
4.5 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Color
Stainless steel

Technical data - mechanical

Surface finishing
Galvanized
Mounting method
Surface mounting
Wall fastening
Material
Sheet steel
Steel
Material quality
Other
Number of connector holes
0
Number of covers/doors
0
Number of locks
0
Permissible load of the door(s) according to IEC 62208 - max
0 N
Permissible load of the enclosure according to IEC 62208 - max
0 N
Permissible load of the mounting plate according to IEC 62208 - max
0 N
Grade material
Sheet steel
Installation type
Floor installation possible
Suitable for height
460 mm
Suitable for width
400 mm

Temperature-rise verification as per IEC 60890

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W

Additional information

Features
Connectable
EMC-version
Functions
Additional equipment
RAL-number
0
Suitable for
Metrical mounting

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
