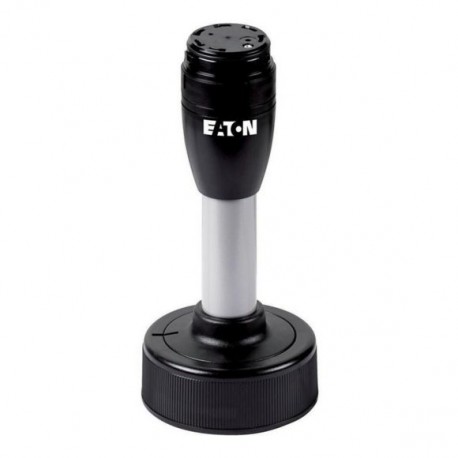

Images are for illustrative purposes only. Please refer to data sheet for details

SL4-SWD 171311 Y7-171311 EATON ELECTRIC Base module connection to SmartWire-DT

SL4-SWD

171311

Y7-171311

EATON - MOELLER

1 Pcs.

Base module;connection to SmartWire-DT SL4-SWD Eaton Moeller® series SL4 Base module;connection to SmartWire-DT Base module, Color black, Aluminum color tube, Product range: SL signal towers, SmartWire-DT slave, Subrange: SmartWire-DT Signal towers, Connection technique: Blade terminal SWD4-8MF2, Mounting type: for horizontal mounting, Fitted with: Base with base adapter for slipping onto place (rapid mounting and wiring system), including cover, Tube length: 100 mm, Description: External power supply connectable (24 V DC), Configurable with SWD‐Assist (planning and ordering tool), Further technical data, see manual MN05006001Z., Number of modules: max. 5 modules, max. 0.3 A per module, For use with: SL4-L-…, SL4-BL-…, SL4-FL-…, SL4-AP-... , Connection to SmartWire-DT: yes, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 4, 4X, 13

Automation > Connection module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller SL4-SWD is a specialized base module that connects indicator columns directly to the SmartWire-DT intelligent wiring system. Such network-enabled bases eliminate traditional multi-core cabling by transmitting control data digitally through a single flat conductor cable. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit: Spring clamp connection
  • Suitable for tube mounting: No
  • Suitable for angle mounting: Yes
  • Suitable for floor mounting: Yes
  • Suitable for AS interface: No
  • Suitable for M12 connector: No
  • Suitable for IO link: No

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Base module
Catalog Number
171311
Model Code
SL4-SWD
EAN
4015081678525
Product Length/Depth
81 mm
Product Height
145 mm
Product Width
81 mm
Product Weight
0.172 kg
Certifications
IEC/EN 60947-5-1
CE
CSA-C22.2 No. 94-91
UL 508
CSA-C22.2 No. 14-10
IEC/EN 60529

Features & Functions

Color
Other
Fitted with:
Cover
Base adapter for slipping onto place (rapid mounting and wiring system)
Number of modules
Max. 5 (0.3 A per module)
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
Yes
Degree of protection
IP66
NEMA 13
NEMA 4X
NEMA 4
Mounting Method
Horizontal
Bracket
Floor
Mounting position
As required
Product Category
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Tube length
100 mm
Type
Base module

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
