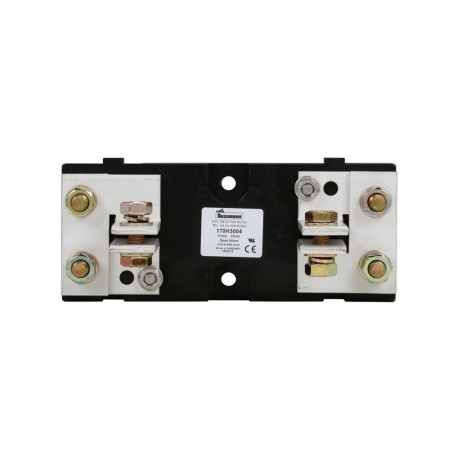

EATON - MOELLER BASE CA 80 1250A 1000V UR 43653 BASE CA 80 1250A 1000V UR 43653 170H3004 EATON ELECTRIC Fuse-base, high speed, 400 A, AC 1000 V, DIN 00, DIN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BASE CA 80 1250A 1000V UR 43653 170H3004 EATON ELECTRIC Fuse-base, high speed, 400 A, AC 1000 V, DIN 00, DIN..

BASE CA 80 1250A 1000V UR 43653

170H3004

170H3004

EATON - MOELLER

1 Pcs.

Fuse-base, high speed, 400 A, AC 1000 V, DIN 00, DIN 000, DIN, IEC, fixed centre fuse base (80mm) BASE CA 80 1250A 1000V UR 43653 Eaton Bussmann series high speed fuse base, 1000 Vac/Vdc, 1250A, fixed centre fuse base (80mm) Fuse accessory, Fuse-base, high speed, 1250 A, AC 1000 V, compact DIN 1, DIN 1, DIN 2, DIN 3, DIN, 80 mm fixing centres, DIN 43653

Automation > Low Voltage HRC fuse base
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high speed fuse-base provides specialized mounting and terminal connection for ultra-rapid semiconductor protection fuses in heavy power electronics and inverter systems. This Eaton Moeller BASE CA 80 1250A 1000V UR 43653 unit delivers high-amperage support with auxiliary contact capability.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Screw-on
  • Connection type (EF000124): Connector M10
  • Number of poles (EF001391): 1
  • Rated current (EF000227): 1250 A
  • Bus-mounting type (EF002573): No
  • Swivelling mechanism (EF002574): No
  • With extra contact (EF020645): Yes
  • Halogen free (EF000025): Yes

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed microswitch
Catalog Number
170H3004
Model Code
BASE CA 80 1250A 1000V UR 43653
EAN
5027590439138
UPC
051712804653
Product Length/Depth
217 mm
Product Height
82 mm
Product Width
94 mm
Product Weight
1339 g
Compliances
RoHS Compliant
Certifications
UL 512

Electrical data

Amperage Rating
1250 A
Voltage rating
1000 Vac, 1000 Vdc

Product specification

Suitable for
DIN 43653 Square body fuses size 1* to 3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
