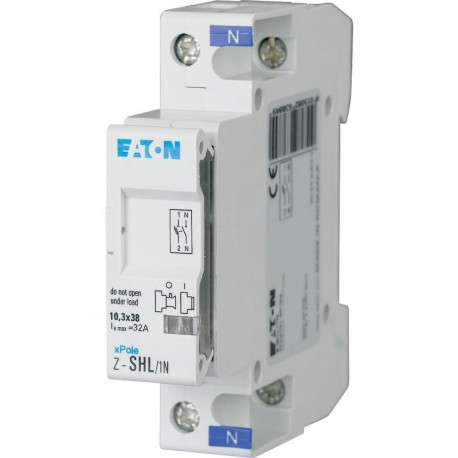

Fuse disconnectors, 1pole+N, 10 x 38 Z-SHL/1N Z-SHL/1N. Fuse disconnectors, 1pole+N, 10 x 38 Fuse disconnector for industrial applications, with visual trip indication, for cylindrical fuse inserts, sealable, supplied without fuses, type conforms to IEC/EN 60947-3

Connectors > Fuse switch disconnector
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting sub-circuits against overcurrent while allowing manual disconnection, this Eaton Moeller Z-SHL/1N fuse disconnector is suitable for modular electrical installations. Such devices accommodate standard cylindrical fuses and are frequently installed in commercial and light industrial distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as safety switch (EF006985): No
  • Max. rated operation voltage Ue AC (EF007355): 230 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation power at AC-23, 400 V (EF007027): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 10 kA
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Suitable for fuses (EF006692): Shape C1-C3
  • Number of poles (EF001391): 2
  • With error protection (EF007384): No
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Equipped with connectors (EF011696): No
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): No
  • Suitable for busbar mounting (EF007259): No
  • Position control element (EF009410): Front

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
263884
Model Code
Z-SHL/1N
EAN
4015082638849
Product Length/Depth
80 mm
Product Height
74 mm
Product Width
17.8 mm
Product Weight
0.092 kg
Compliances
RoHS conform

Product specifications

Rated uninterrupted current (Iu)
32 A
Conditioned rated short-circuit current Iq
10 kA
Number of poles
Single-pole + N
Rated operation power at AC-23, 400 V
0 kW
Rated short-time withstand current (Icw)
0 kA
Electrical connection type of main circuit
Screw connection
Actuator position
Front side
Actuator type
Other
Rated conditional short-circuit current (Iq)
10 kA
Suitable for fuses
Shape C1-C3
Cable entry type
Other
Degree of protection (front side)
IP20
Power rating at AC-23, 400 V
0 kW
Rated operating voltage (Ue) at AC - max
230 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
