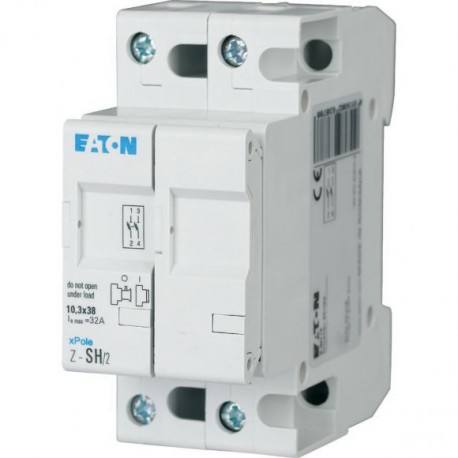

Z-SH/2 263878 Y7-263878 EATON ELECTRIC Fuse disconnectors, 2 p, 10 x 38
Z-SH/2
263878
Y7-263878
EATON - MOELLER
6 Pcs.
Connectors > Fuse switch disconnector
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Fuse disconnectors, 2 p, 10 x 38 unit secures cylindrical fuses to protect auxiliary control circuits and minor loads from overcurrent events. Electrical designers integrate these compact devices into distribution panels for safe manual disconnection and dependable circuit protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as safety switch (EF006985): No
- Max. rated operation voltage Ue AC (EF007355): 400 V
- Rated permanent current Iu (EF001389): 32 A
- Rated operation power at AC-23, 400 V (EF007027): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 10 kA
- Rated short-time withstand current lcw (EF007050): 0 kA
- Suitable for fuses (EF006692): Shape C1-C3
- Number of poles (EF001391): 2
- With error protection (EF007384): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Installed with connectors (EF011696): No
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): No
- Suitable for busbar mounting (EF007259): No
- Position control element (EF009410): Front
