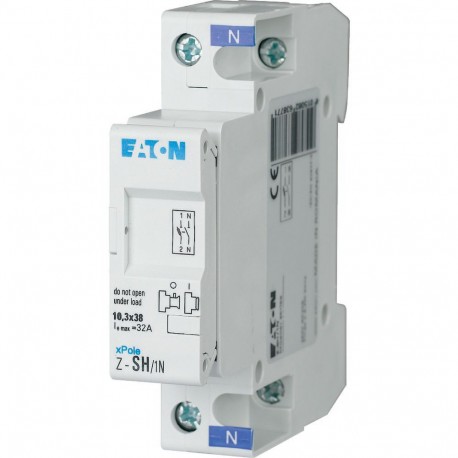

EATON - MOELLER Z-SH/1N Z-SH/1N 263877 Y7-263877 EATON ELECTRIC Fuse disconnectors, 1pole+N, 10 x 38 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Z-SH/1N 263877 Y7-263877 EATON ELECTRIC Fuse disconnectors, 1pole+N, 10 x 38

Z-SH/1N

263877

Y7-263877

EATON - MOELLER

12 Pcs.

Fuse disconnectors, 1pole+N, 10 x 38 Z-SH/1N Eaton Distribution parts. Fuse disconnectors, 1pole+N, 10 x 38 Fuse disconnector for industrial applications, without visual trip indication, for cylindrical fuse inserts, sealable, supplied without fuses, type conforms to IEC/EN 60947-3

Connectors > Fuse switch disconnector
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
263877
Model Code
Z-SH/1N
EAN
4015082638771
Product Length/Depth
80 mm
Product Height
74 mm
Product Width
17.8 mm
Product Weight
0.092 kg
Compliances
RoHS conform

Product specifications

Rated uninterrupted current (Iu)
32 A
Conditioned rated short-circuit current Iq
10 kA
Number of poles
Single-pole + N
Rated operation power at AC-23, 400 V
0 kW
Rated short-time withstand current (Icw)
0 kA
Electrical connection type of main circuit
Screw connection
Actuator position
Front side
Actuator type
Other
Rated conditional short-circuit current (Iq)
10 kA
Suitable for fuses
Shape C1-C3
Cable entry type
Other
Degree of protection (front side)
IP20
Power rating at AC-23, 400 V
0 kW
Rated operating voltage (Ue) at AC - max
230 V

ETIM for 263877 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as safety switch (EF006985) No
Max. rated operation voltage Ue AC (EF007355) 230 V
Rated permanent current Iu (EF001389) 32 A
Rated operation power at AC-23, 400 V (EF007027) 0 kW
Conditioned rated short-circuit current Iq (EF001444) 10 kA
Rated short-time withstand current lcw (EF007050) 0 kA
Suitable for fuses (EF006692) Shape C1-C3
Number of poles (EF001391) 2
With error protection (EF007384) No
Type of electrical connection of main circuit (EF006819) Screw connection
Cable entry (EF000537) Other
Equipped with connectors (EF011696) No
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) No
Type of control element (EF006976) Other
Position control element (EF009410) Front
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No
Degree of protection (IP), front side (EF003118) IP20
