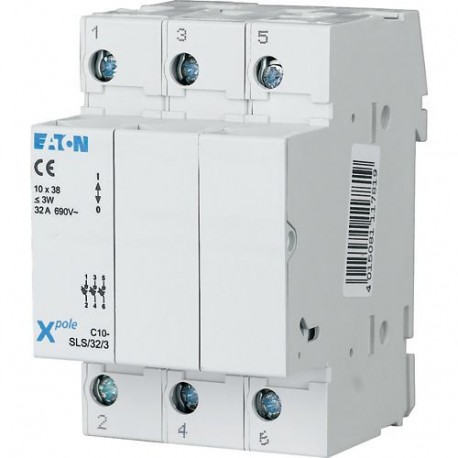

EATON - MOELLER C10-SLS/32/3 C10-SLS/32/3 112223 65A3137G13 EATON ELECTRIC Fuse disconnectors, 32A, 3 p, 10 x 38 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C10-SLS/32/3 112223 65A3137G13 EATON ELECTRIC Fuse disconnectors, 32A, 3 p, 10 x 38

C10-SLS/32/3

112223

65A3137G13

EATON - MOELLER

1 Pcs.

Fuse disconnectors, 32A, 3 p, 10 x 38 Fuse switch-disconnector, the flash function indicates the blowing of fuse link, sealable, double conductor run possible on both sides, /L type with flashing function, suitable for cylindrical fuses with application category gG, aM, supplied without fuses, types conform to IEC/EN 60947-3

Connectors > Fuse switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller fuse disconnector serves as a modular device for safeguarding commercial and industrial control circuits against overloads and short circuits. These 3-pole units accept cylindrical fuses to isolate specific branches during maintenance safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as safety switch (EF006985): No
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation power at AC-23, 400 V (EF007027): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA
  • Rated short-time withstand current lcw (EF007050): 0.3 kA
  • Suitable for fuses (EF006692): Shape C1-C3
  • Number of poles (EF001391): 3
  • With error protection (EF007384): No
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Equipped with connectors (EF011696): No
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for busbar mounting (EF007259): No
  • Position control element (EF009410): Front

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
112223
Model Code
C10-SLS/32/3
EAN
4015081117819
Product Length/Depth
85 mm
Product Height
70.8 mm
Product Width
52.5 mm
Product Weight
0.18 kg
Compliances
RoHS conform

Product specifications

Rated uninterrupted current (Iu)
32 A
Conditioned rated short-circuit current Iq
100 kA
Number of poles
Three-pole
Rated operation power at AC-23, 400 V
0 kW
Rated short-time withstand current (Icw)
0.3 kA
Electrical connection type of main circuit
Screw connection
Actuator position
Front side
Actuator type
Other
Suitable for
Ground mounting
Rated conditional short-circuit current (Iq)
100 kA
Suitable for fuses
Shape C1-C3
Cable entry type
Other
Degree of protection (front side)
IP20
Power rating at AC-23, 400 V
0 kW
Rated operating voltage (Ue) at AC - max
690 V
