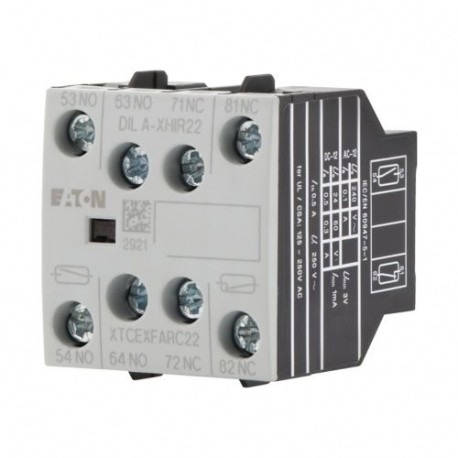

DILA-XHIR22 139580 Y7-139580 EATON ELECTRIC Auxiliary contact module, 2N/O+2N/C, electronic
DILA-XHIR22
139580
Y7-139580
EATON - MOELLER
5 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An auxiliary contact module, such as the Eaton Moeller DILA-XHIR22, mounts directly onto industrial contactors to increase the number of available control circuits for interlocking and signaling tasks. These electronic modules switch low-power control signals in tandem with the main contactor coil, allowing complex automation logic to coordinate with motor starters. They clip onto standard contactor housings within control enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 2
- Number of contacts as normally closed contact (EF008255): 2
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 4 A
- Type of electric connection (EF003961): Screw connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
More info
▲General specifications
UL File No.: E29184
VDE 0660
CSA Class No.: 3211-03
UL 508
IEC/EN 60947
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
UL
Features & Functions
For standard applications
Interlocked opposing contacts
General
7 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
1,300,000 Operations (at DC-12, 24 V / 50 mA)
10,000,000 Operations (AC operated)
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
1 x (0.75 - 1.5) mm², Screw terminals
1 x (0.75 - 2.5) mm², Screw terminals
2, Terminal screw, Pozidriv screwdriver
Electrical rating
2.5 A at 24 V, DC L/R ≤ 50 ms (with 3 contacts in series)
0.1 A at AC-12, 240 V
0.3 A at DC-12, 60 V
10 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
1 A at 60 V, DC L/R ≤ 50 ms (with 3 contacts in series)
0.5 A at 110 V, DC L/R ≤ 50 ms (with 3 contacts in series)
3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series)
1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
0.5 A at DC-12, 24 V
10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
10 A gG/gL, 500 V, Max. Fuse, Contacts
400 V AC, Between coil and auxiliary contacts, According to EN 61140
Communication
Contacts
42 in combination with DILA(C)-31
51E in combination with DILA(C)-40
λ < 5.3 x 1/10⁸ (1 failure at 19,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 1 mA)
