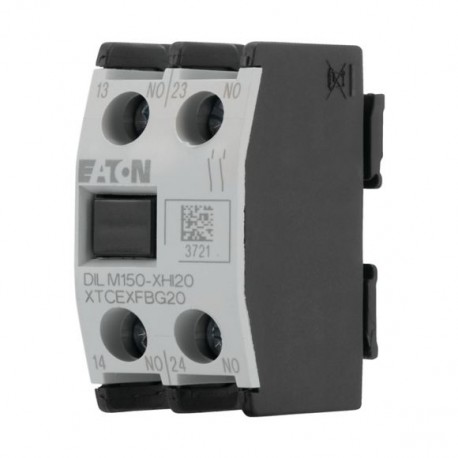

DILM150-XHI20 277945 Y7-277945 EATON ELECTRIC Auxiliary contact module, 2N/O
DILM150-XHI20
277945
Y7-277945
EATON - MOELLER
1 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Auxiliary contact modules like the Eaton Moeller DILM150-XHI20 provide supplementary electrical pathways for interlocking and signalling in contactor circuits. Panel builders deploy these modular blocks to transmit operational states to supervisory control systems and safety interlocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DILM150-XHI20
- Catalogue code: 277945
- Catalogue title: DILM150-XHI20 277945 Y7-277945 EATON ELECTRIC Auxiliary contact module, 2N/O
- Product description: General specifications Product Name Eaton Moeller series DILM auxiliary contact module Catalog Number 277945 Model Code DILM150-XHI20 EAN 4015082779450 Product Length/Depth 39 mm Product Height 46 mm Product Width 24 mm
- Manufacturer summary: Auxiliary contact module, 2N/O DILM150-XHI20 Eaton Moeller series DILM Auxiliary contact module, 2 pole, Ith= 16 A, 2 N/O, Front fixing, Screw terminals, DILM40 - DILM170
More info
▲General specifications
IEC/EN 60947
UL Category Control No.: NKCR
CSA
UL File No.: E29184
UL
CE
UL 508
CSA File No.: 012528
IEC/EN 60947-4-1
CSA-C22.2 No. 14-05
VDE 0660
Features & Functions
General
Ambient conditions, mechanical
7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
2 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
2, Terminal screw, Pozidriv screwdriver
Electrical Rating
10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series)
Short-circuit rating
Conventional thermal current
Switching capacity
15 A, 600 V AC, (UL/CSA)
P300, DC operated (UL/CSA)
Communication
Contacts
Safety
440 V AC, Between auxiliary contacts, According to EN 61140
