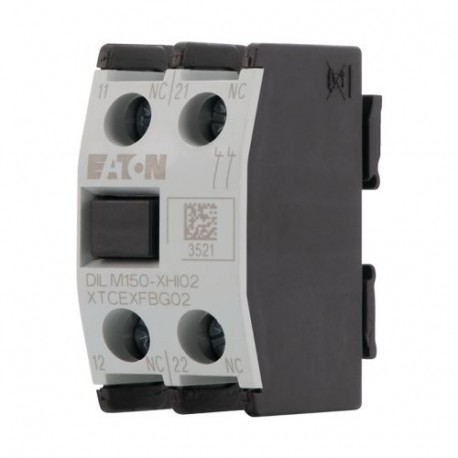

DILM150-XHI02 277947 Y7-277947 EATON ELECTRIC Auxiliary contact module, 2 N/C
DILM150-XHI02
277947
Y7-277947
EATON - MOELLER
1 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller DILM150-XHI02 auxiliary contact module is a supplementary switching device attached to primary contactors to expand control circuit capabilities. These modules manage secondary signaling, interlocking, and feedback loops in industrial motor control panels without needing extra standalone relays.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 2
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Type of electric connection (EF003961): Screw connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
More info
▲General specifications
IEC/EN 60947
CE
CSA Class No.: 3211-03
UL File No.: E29184
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
VDE 0660
UL
UL 508
IEC/EN 60947-4-1
Features & Functions
General
Ambient conditions, mechanical
5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
2 x (0.75 - 2.5) mm²
1 x (0.75 - 2.5) mm²
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
Electrical Rating
1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)
3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
Short-circuit rating
Conventional thermal current
Switching capacity
15 A, 600 V AC, (UL/CSA)
A600, AC operated (UL/CSA)
Communication
Contacts
Safety
440 V AC, Between coil and auxiliary contacts, According to EN 61140
