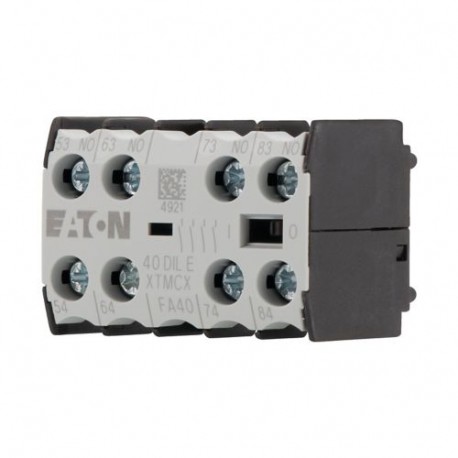

40DILE 010304 Y7-10304 EATON ELECTRIC Auxiliary contact, 4N/O, surface mounting, screw connection
40DILE
010304
Y7-10304
EATON - MOELLER
1 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller auxiliary contact 40DILE (010304) adds multiple normally open circuits to control relays for enhanced automation functionality and interlocking schemes. Clip-on auxiliary modules allow engineers to modify relay capacities quickly without replacing primary hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 4
- Number of contacts as normally closed contact: 0
- Number of fault-signal switches: 0
- Rated operation current Ie at AC-15, 230 V: 4 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Front fastening
More info
▲General specifications
CSA
CSA Class No.: 3211-03
IEC/EN 60947-4-1
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 14-05
UL
Features & Functions
Switching elements according to EN 50005
General
10,000,000 Operations (AC operated)
150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A)
200,000 Operations (at 240 V, AC-15)
10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
1 x (0.75 - 1.5) mm²
2 x (0.75 - 2.5) mm²
2, Terminal screw, Pozidriv screwdriver
Electrical rating
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
300 V AC, Between coil and auxiliary contacts, According to EN 61140
Short-circuit rating
Conventional thermal current Ith
Switching capacity
0.5 A, 250 V DC, (UL/CSA)
P300, DC operated (UL/CSA)
Contacts
71 in combination with DILER-31(-G)
62 in combination with DILER-22
