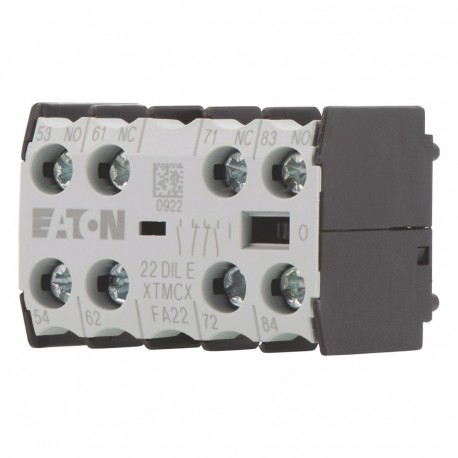

22DILE 010288 Y7-10288 EATON ELECTRIC Auxiliary contact, 2N/O+2N/C, surface mounting, screw connection
22DILE
010288
Y7-10288
EATON - MOELLER
1 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Auxiliary contact attaches to control relays and contactors to expand the available normally open and normally closed circuits for automated machinery. Technicians rely on these modular switching blocks to transmit operational states to monitoring equipment and interlocking safety networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 2
- Number of contacts as normally closed contact (EF008255): 2
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 4 A
- Type of electric connection (EF003961): Screw connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
More info
▲General specifications
CSA Class No.: 3211-03
IEC/EN 60947-4-1
VDE 0660
CSA
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA File No.: 012528
CE
IEC/EN 60947
CSA-C22.2 No. 14-05
Features & Functions
Switching elements according to EN 50005
General
200,000 Operations (at 240 V, AC-15)
20,000,000 Operations (DC operated)
10,000,000 Operations (AC operated)
8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
1 x (0.75 - 1.5) mm²
2 x (0.75 - 2.5) mm²
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
Electrical rating
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
300 V AC, Between auxiliary contacts, According to EN 61140
Short-circuit rating
Conventional thermal current Ith
Switching capacity
0.5 A, 250 V DC, (UL/CSA)
P300, DC operated (UL/CSA)
Contacts
53 in combination with DILER-31(-G)
44 in combination with DILER-22
